Nanlux Evoke 5C KIT – Full-Colour LED Spot Light with Accessory Kit

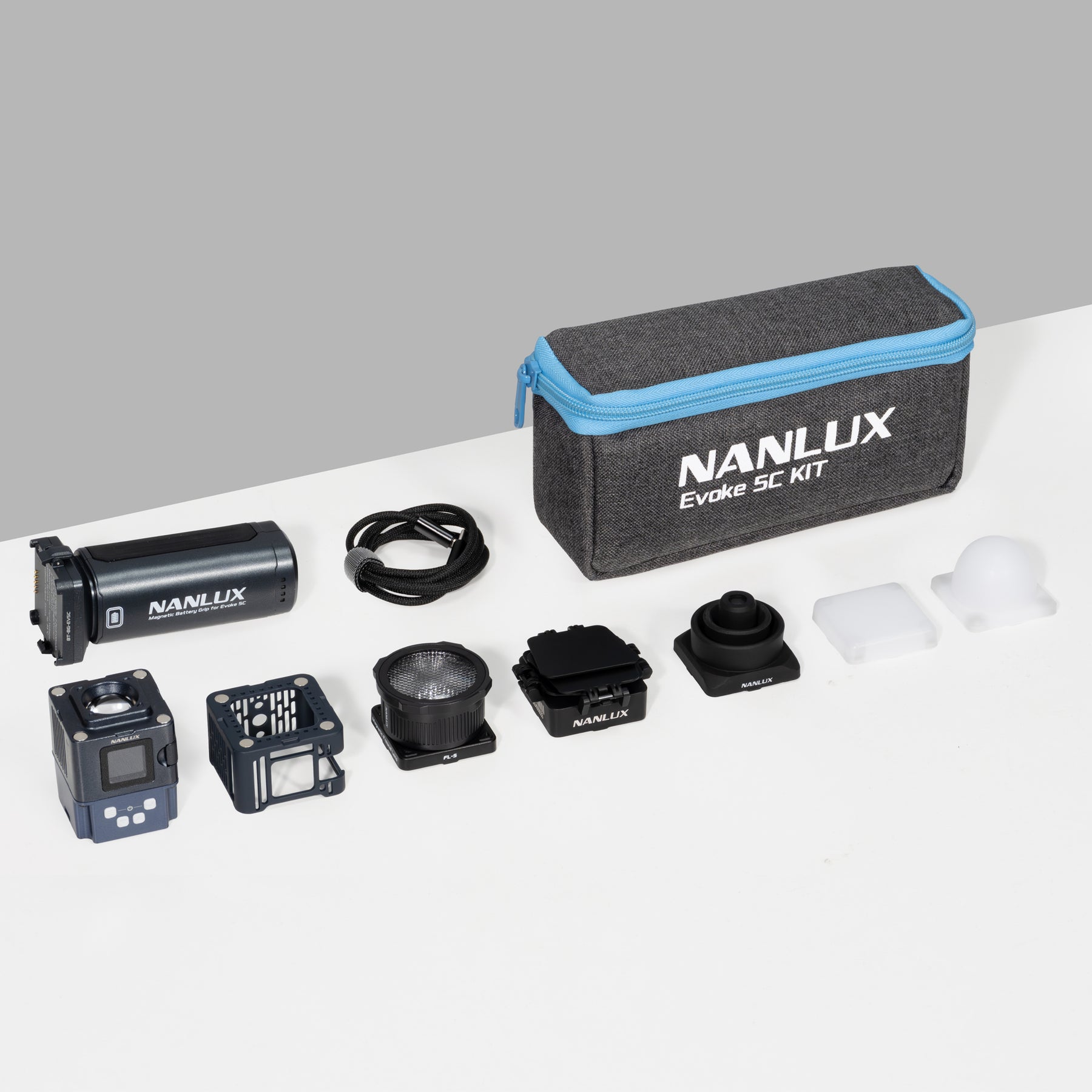

The Evoke 5C KIT is the single-light package: the fixture plus the FL-5 magnetic fresnel, soft dome, barndoor, snoot and magnetic battery grip, in a carrying bag with a carabiner.

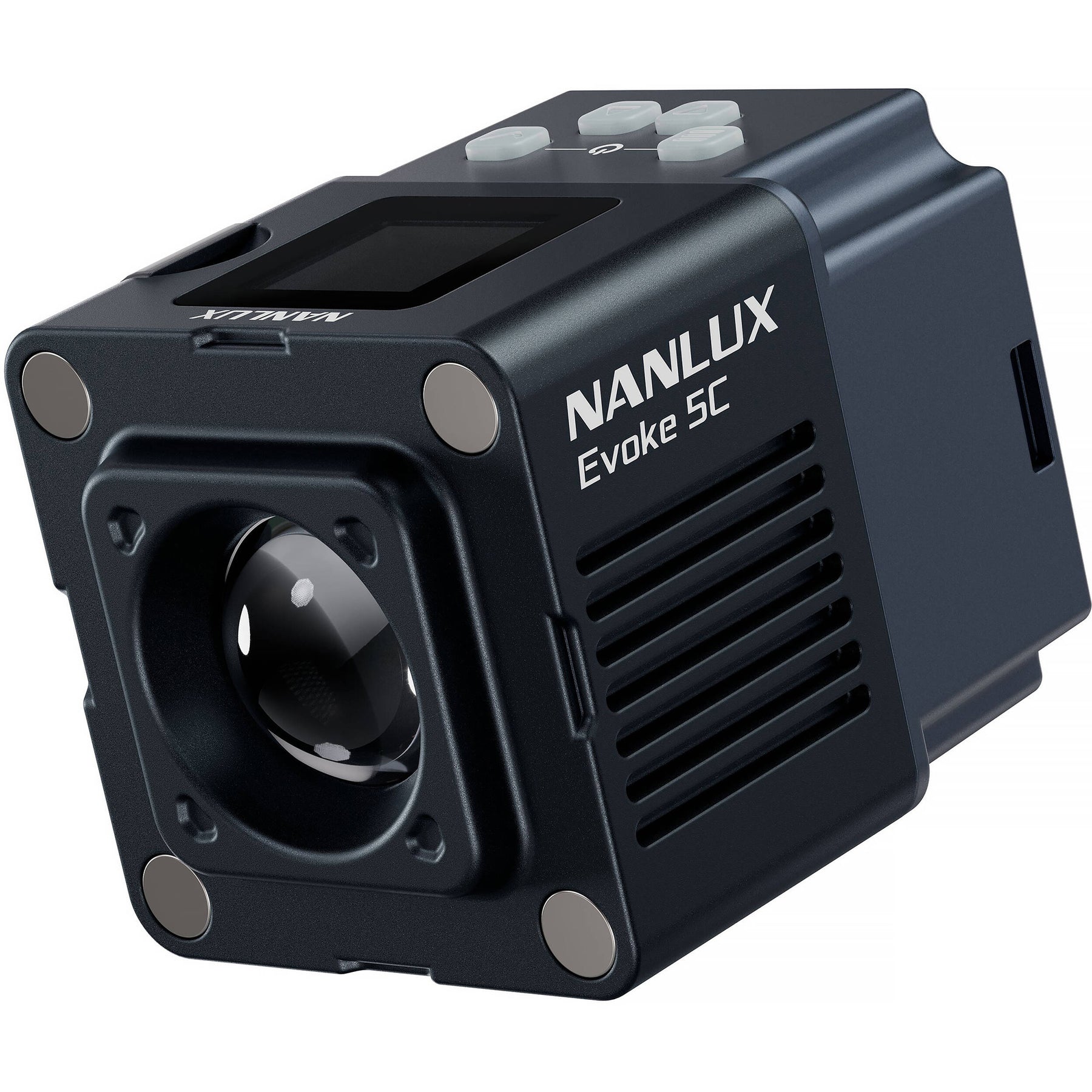

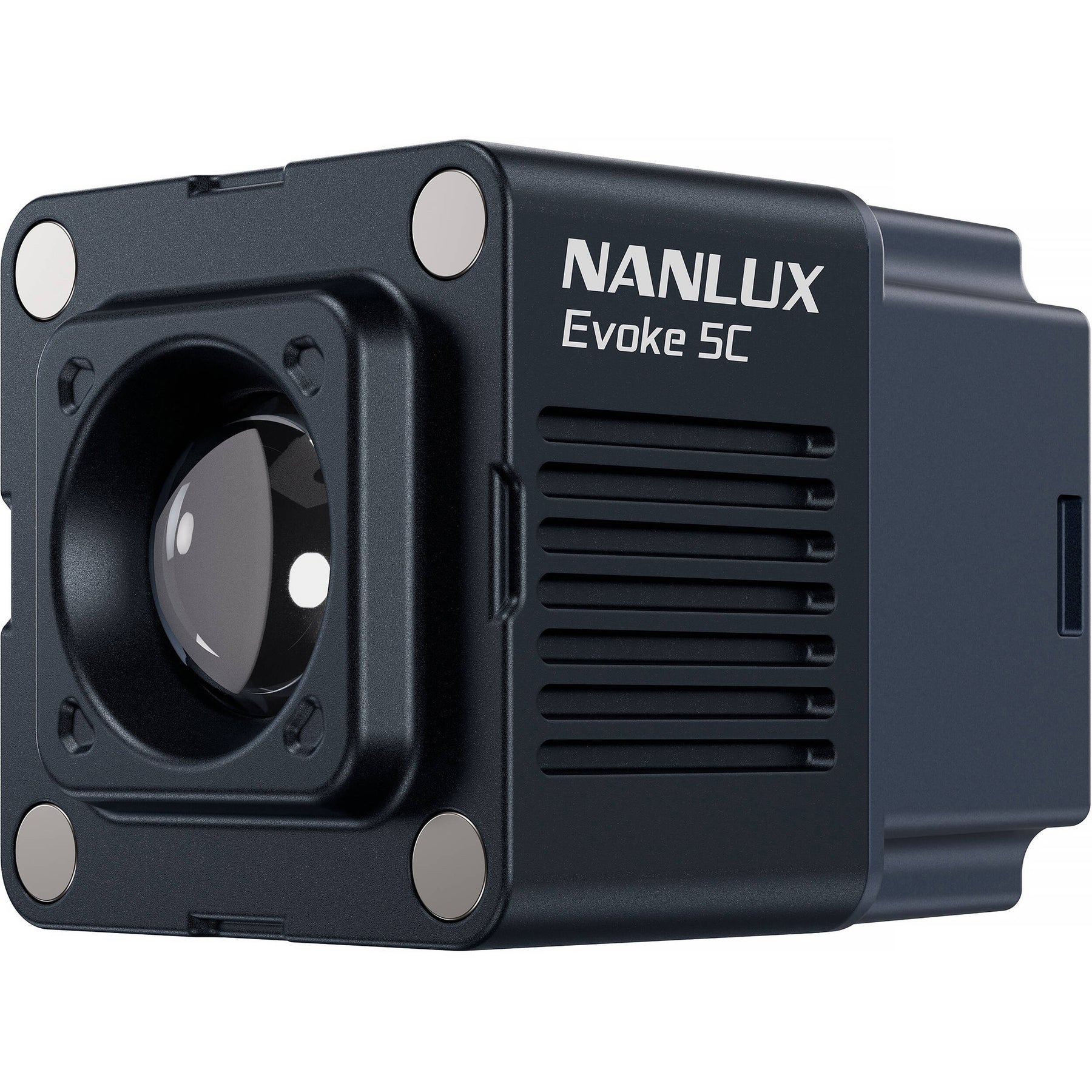

The Evoke 5C is a 6W full-colour point source measuring 56 × 44 × 45 mm and weighing 160 g. It runs on a built-in battery, is IP67 rated, and uses the same eight-colour Nebula C8 engine as the Evoke 150C and 600C. Magnetic mounts front and back take the modifiers; rear contacts take the battery grip, E27 socket adapter and CRMX module.

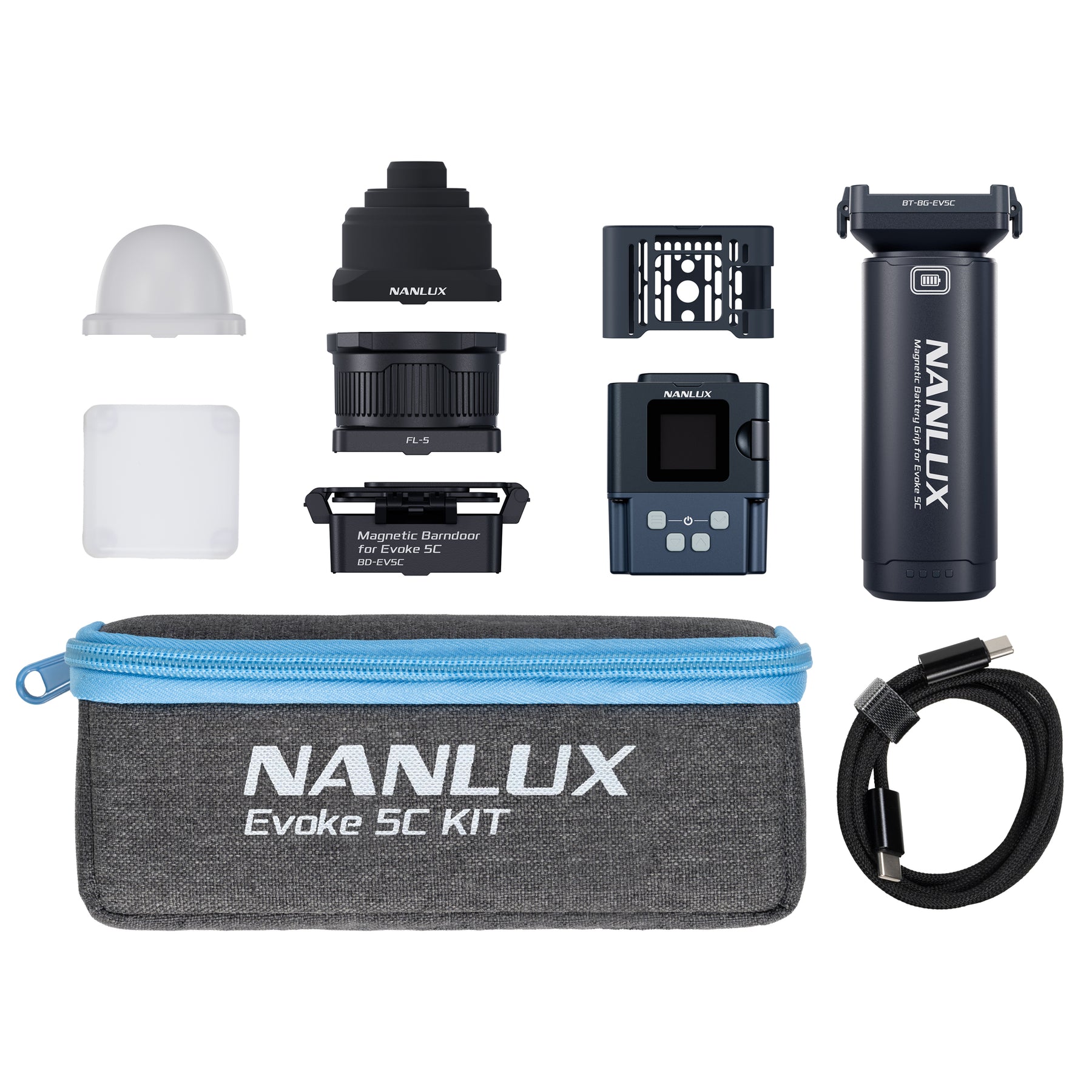

In the box

• Evoke 5C
• USB-C cable
• Magnetic diffuser
• FL-5 magnetic fresnel lens (25°–35°)
• Magnetic soft dome
• Magnetic barndoor
• Magnetic snoot
• Magnetic thermal shield
• Magnetic battery grip (BT-BG-EV5C)
• Carrying bag with carabiner
• User manual

Key features

• Nebula C8 engine; CCT 1 000K to 20 000K with ±200 green/magenta
• CRI 98, TLCI 98, TM-30 Rf 96 / Rg 100 (Nanlux average values)
• Seven modes: CCT, HSI, HSIW, RGBW, XY, Gel (460 LEE and Rosco) and 15 effects
• Battery: about 50 min at 100%, about 2 h 36 min at 1%; charges from USB-C 5V/2A or more
• Control: on-board buttons, Nanlink app (Bluetooth), NFC, DMX/RDM via USB-C adapter cable, CRMX via magnetic module
• 5 970 lux at 0.3 m (5600K) bare; 13 830 lux with the FL-5 fresnel at 25°
