The Ranger series tripods offer a strong, rigid camera support system in a package that is lightweight, compact and easy to use and maintain. Read the detailed description below to find out more about this tripod range.

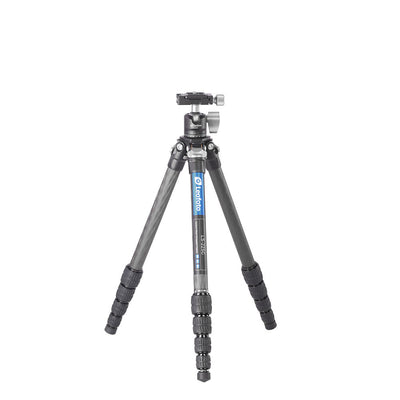

- Leofoto Ranger LS-225C Carbon Fiber Tripod Legs
- Leofoto LH-25 Ball Head
- PU-25 Arca-swiss compatible plate
- Padded Storage and Travel Bag
- Carabiner and Attachment Screw
- Modular Center Column
- Material - Carbon Fiber
- Leg Sections - 5
- Maximum Height (With Column) - 158,5cm
- Maximum Height (Without Column) - 127cm
- Minimum Height - 13cm
- Closed Length - 45cm
- Weight - 930g
- Load Capacity - 4kg
The Leofoto Ranger series is at the forefront of modern tripod design. Following the success of larger systematic style column-less tripods, more and more photographers are waking up to the fact that a center-column is a major compromise in tripod functionality. Sadly, most manufacturers have been slow to adopt this change. Leofoto is one of the first brands to bring out a column-less design as their core tripod range.
When you take away the center-column, the legs can be stowed flush against each other, which trims the folded diameter of tripods by as much as 40%. Removing the center-column also makes it lighter and cheaper, while improving rigidity as there are less interconnecting parts between the legs and the camera. The only major compromise is the lack of extra height that a center-column affords. Until recently, this has posed a major issue, but the latest precision carbon tubing and joint technology means that today’s 5-section tripods are as rigid as yesterday’s 4-section tripods. Manufacturers can thus increase the extended height of tripods, while keeping the folded length travel-friendly.
Apex – All ranger series tripods feature a compact apex machined from aircraft grade aluminum. The apex is hollwed out to save weight and hard anodized for durability. On the side you will find a UNC ¼” mounting hole for Leofoto’s AM range of magic arms for attaching accessories like smartphone holders, gopros or speedlights. Below the apex is another UNC ¼” mounting hole for attaching a weight hook – such a hook and carabiner are included with all Ranger tripods. The legs attach via stainless steel hinge shafts and brass bushings to a machined aluminium hinge chassis – premium materials you won’t see on many tripods in the market today.
Premium Japanese Carbon Fiber - Leofoto uses 10x layer cross-weave carbon fiber tubes made by Toray Inc – one of the world’s top carbon fiber manufacturers. This ensures strength and rigidity, while ensuring class-leading weight specifications. The hinges feature self-returning angle-selectors, a small feature that speeds up operation. All Ranger tripods offer leg angles of 23, 55 and 85 degrees.
Uncomplicated Joints – All tripod ranges feature fat joints with prominent ribbing to provide great grip and torque for easy loosening and tightening of the legs. One of Leofoto’s proprietary features is a single-piece joint-shim (the shim helps legs to lock together more firmly and prevents the legs from being able to rotate within each other); those who have opened up a twist-joint tripod and seen parts fly will know the frustration of disassembling and reassembling those delicate internal components. All Leofoto tripods feature a one-piece shim, which makes maintenance and cleaning of the joints much easier.
Beveled Aluminium Core Feet – A tripod foot is just a piece of rubber, right? Think again! Most manufacturer’s tripod feet are just a steel spike encased in rubber – this makes it heavy and allows a lot of flex/vibration in the malleable rubber. Leofoto’s engineers have gone to great lengths to make the ultimate tripod foot and the result is an internal aluminium frame that minimizes the amount of flexible rubber in the construction. While this is a tiny detail, it adds to the rigidity of the tripod. All Leofoto ranges’ feet feature a multi-angled bevel, which helps it to grip on uneven terrain. All Leofoto tripods also include a set of spiked feet for shooting on ice or slippery rocks.
What is the culmination of all these features? One of the world’s best tripod ranges at a fraction of the price of the competition. As they say, the proof is in the pudding, well here is the pudding. Thecentercolumn.com is the DXO labs of tripods – they do a lot of controlled rigidity and other testing and combine it with a ton of other metrics like price, weight and included extras to give tripods an overall score. On the travel tripod rankings, the Leofoto Rangers hold 3 of the top 10 spots alongside Gitzo and RRS, but if you look at the price of the competition, your jaw will drop. The Leofoto options cost between 25-50% of the other tripods on the top 10 list.
