Leofoto X Mountain Forged Juggernaut S3 Carbon Fibre Shooting Tripod Kit

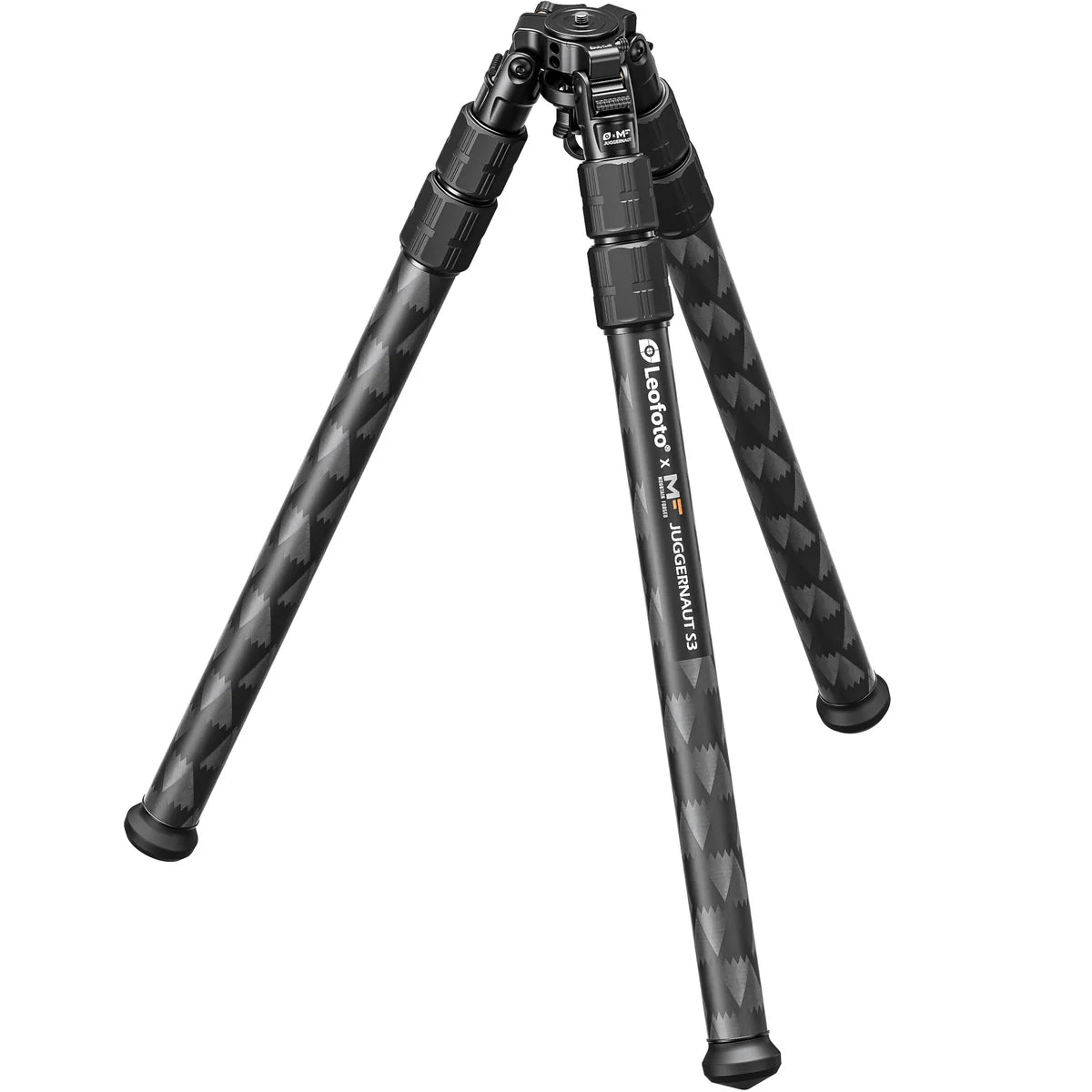

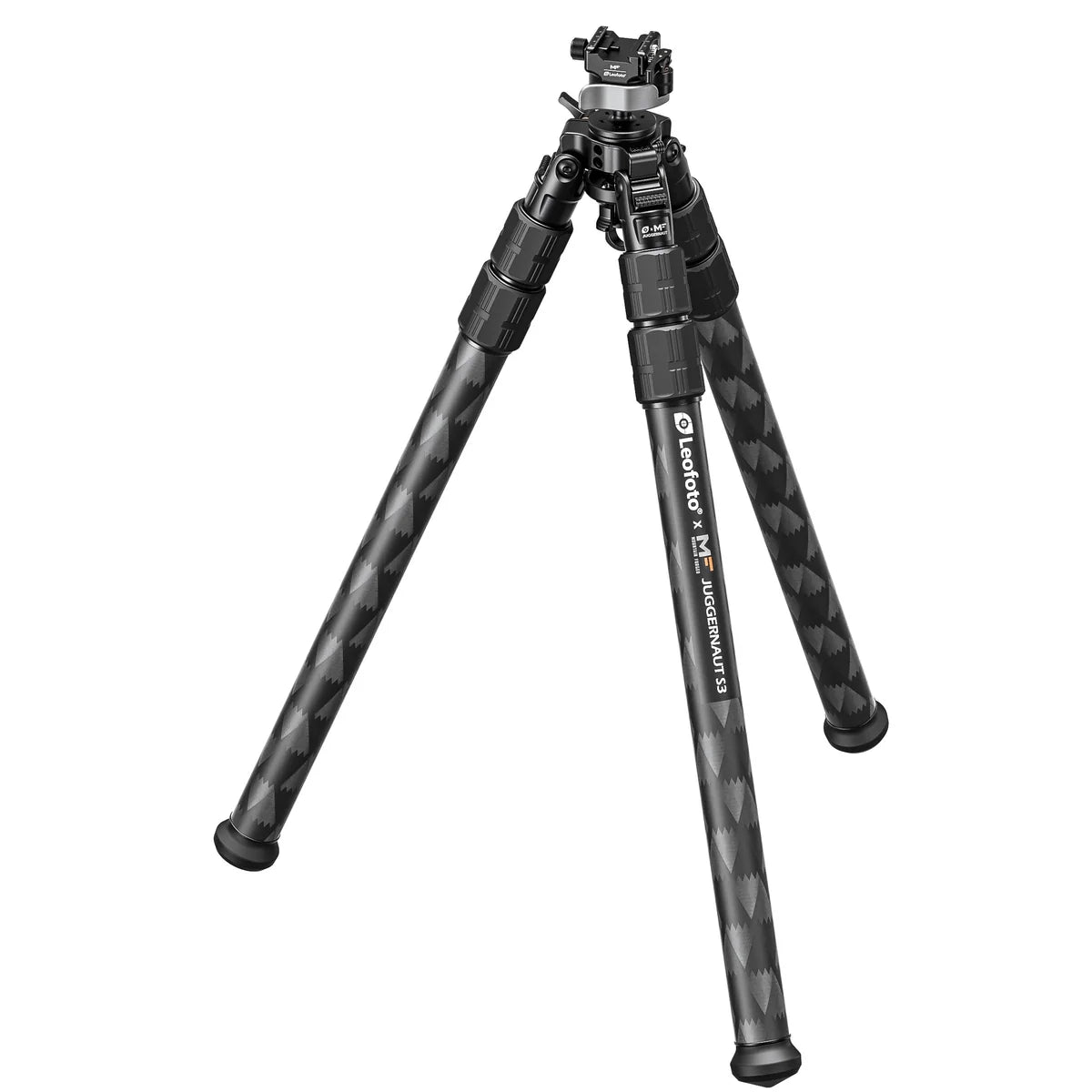

The Leofoto X Mountain Forged Juggernaut S3 combines the extreme rigidity of the Juggernaut platform with a more compact, field-friendly design. Its three-section inverted legs fold to 84.5cm while still reaching a full working height of 168.7cm.

Massive 44.7mm, 40mm and 36mm Toray 10-layer carbon fibre tubes minimise flex and vibration under heavy rifle and optics setups. The inverted leg design allows fast deployment, while Leofoto’s patented pull-down tripod lock secures the legs against unwanted movement or collapse.

The S3 is the best all-round Juggernaut for shooters who need uncompromising stability without the extended packed length of the two-section S2.

Stock availability: Stock arrival dates are currently unconfirmed, but we’re working to secure stock as soon as possible. Select Notify me when available at the bottom left of this page to receive an alert when stock arrives.

MA-40SXO Juggernaut Head

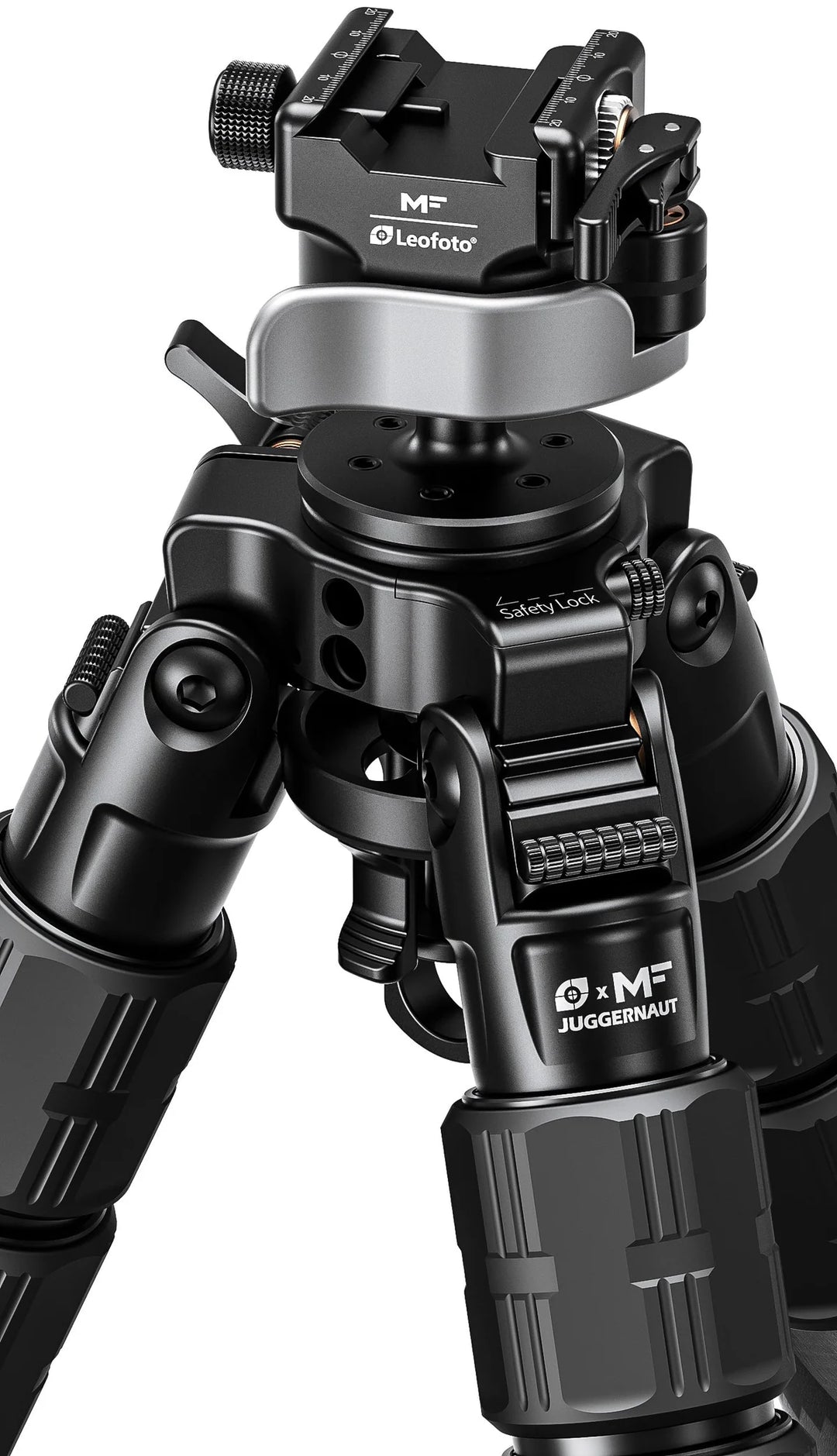

The included Juggernaut Head uses a large 40mm ball for strong lockup and smooth, controlled movement. Its low-profile construction keeps the rifle close to the apex, improving balance and reducing leverage over the tripod.

The hybrid clamp accepts both Arca and Picatinny rails. Arca clamp tension is controlled through a fine-adjustment lever, while a separate knob securely locks Picatinny rails. Six security screws can be tightened after installation for maximum rigidity under recoil.

Key features

• Three-section inverted carbon fibre legs
• Massive 44.7mm, 40mm and 36mm leg diameters
• Toray 10-layer carbon fibre construction
• 54kg tripod load capacity
• Patented pull-down tripod locking system
• Fast quarter-turn LN twist locks
• Three leg angles: 24°, 55° and 85°
• Upgraded modular LQ Urban Apex
• Hybrid Arca and Picatinny Juggernaut Head
• Compatible with the optional Juggernaut centre column
• Extra-long 5-inch spikes for soft terrain

Who should choose the S3?

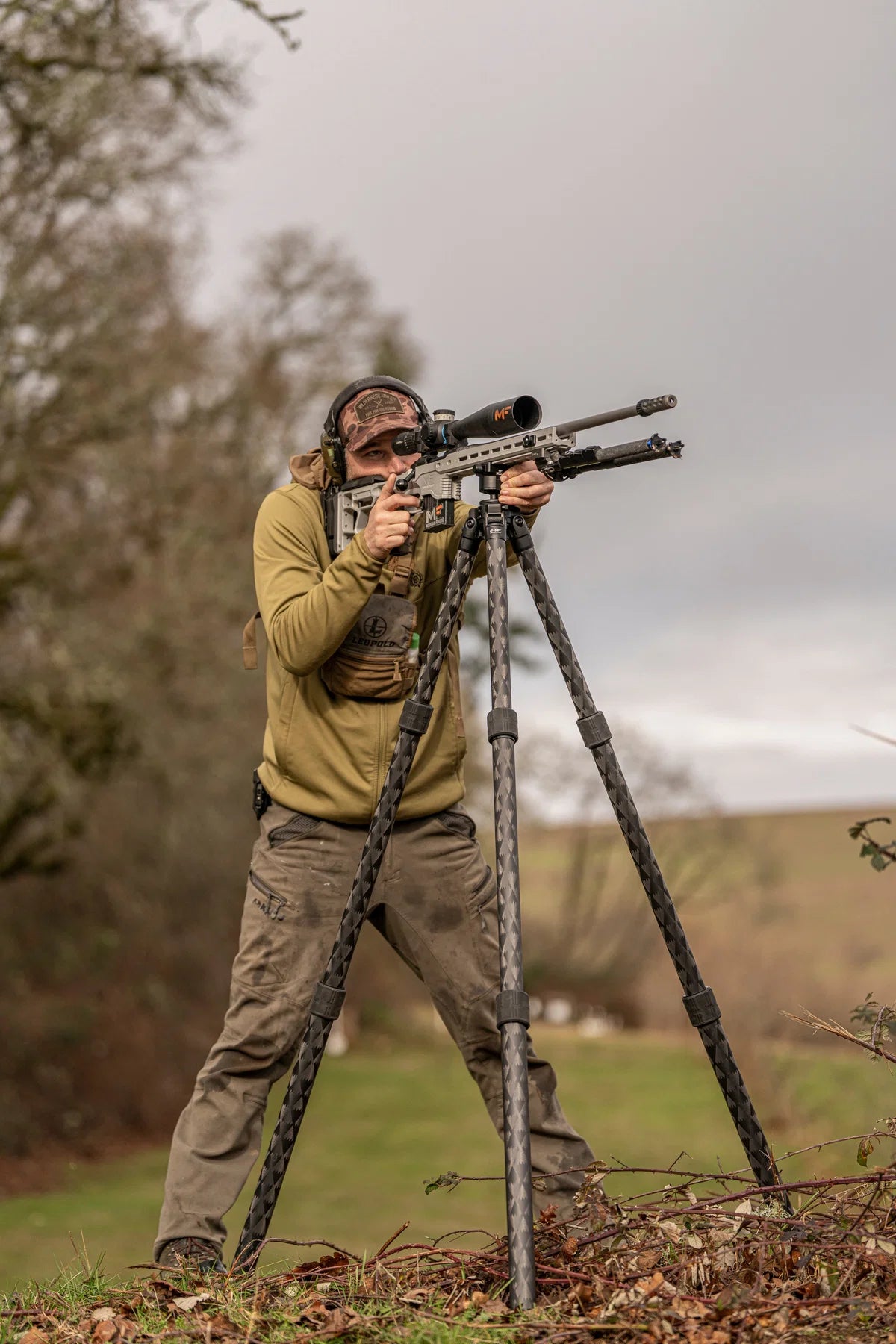

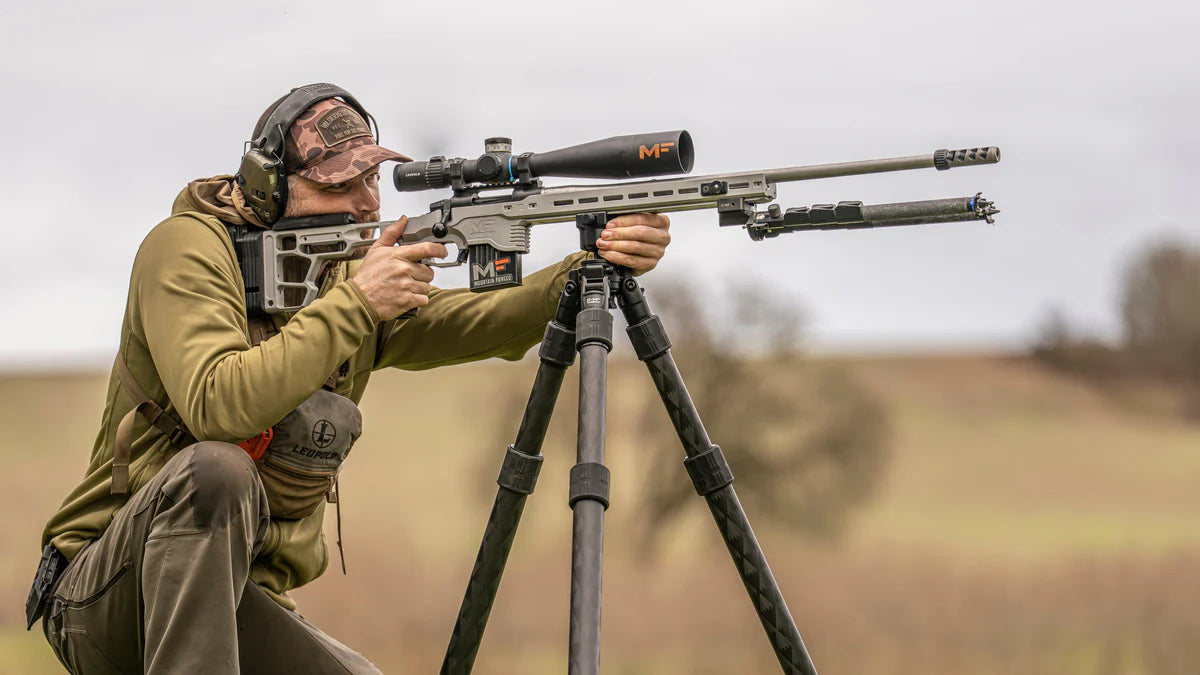

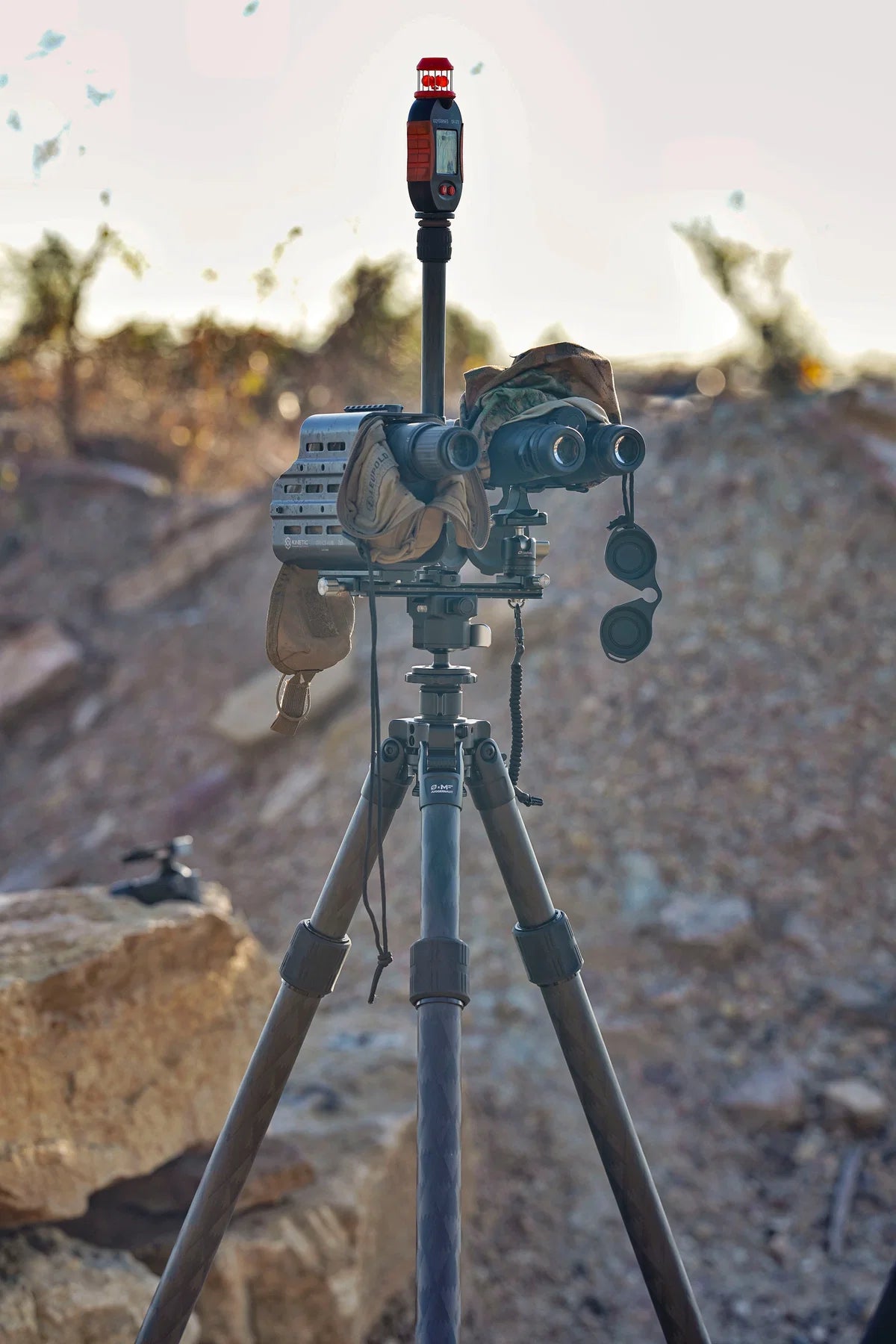

Choose the Juggernaut S3 if you need a full-height precision shooting tripod that packs shorter for transport. Its inverted three-section legs make it particularly well suited to PRS and NRL-style competition, long-range hunting, ELR shooting, spotting and frequent movement between positions.

Specifications

Tripod

• Leg sections: 3
• Leg design: Inverted
• Leg diameters: 44.7mm / 40mm / 36mm
• Material: Toray 10-layer carbon fibre
• Maximum load: 54kg

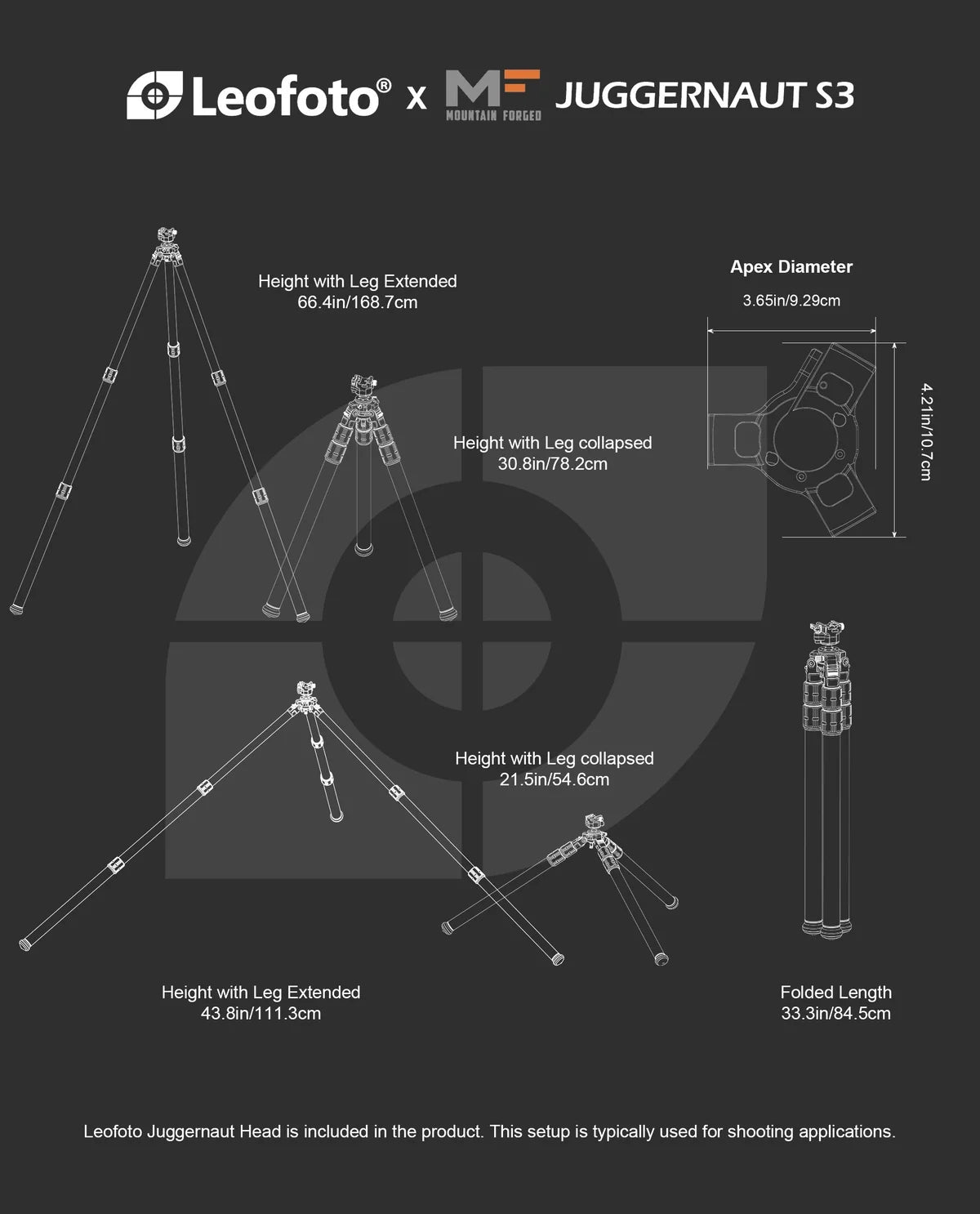

• Maximum working height: 168.7cm
• Low-position height: 54.6cm
• Folded length: 84.5cm
• Tripod weight: 3.135kg
• Leg angles: 24° / 55° / 85°
• Apex diameter: 92.9mm

MA-40SXO Juggernaut Head

• Ball diameter: 40mm
• Maximum load: 20kg
• Clamp: Arca and Picatinny dual rail
• Mounting thread: 3/8"-16
• Head height: 83mm
• Base diameter: 57mm
• Head weight: 491g

What’s included

• Juggernaut S3 carbon fibre tripod
• MA-40SXO Juggernaut Head
• Extra-long 5-inch foot spikes
• Rubber feet
• Hex-key tool set
• Protective carry bag

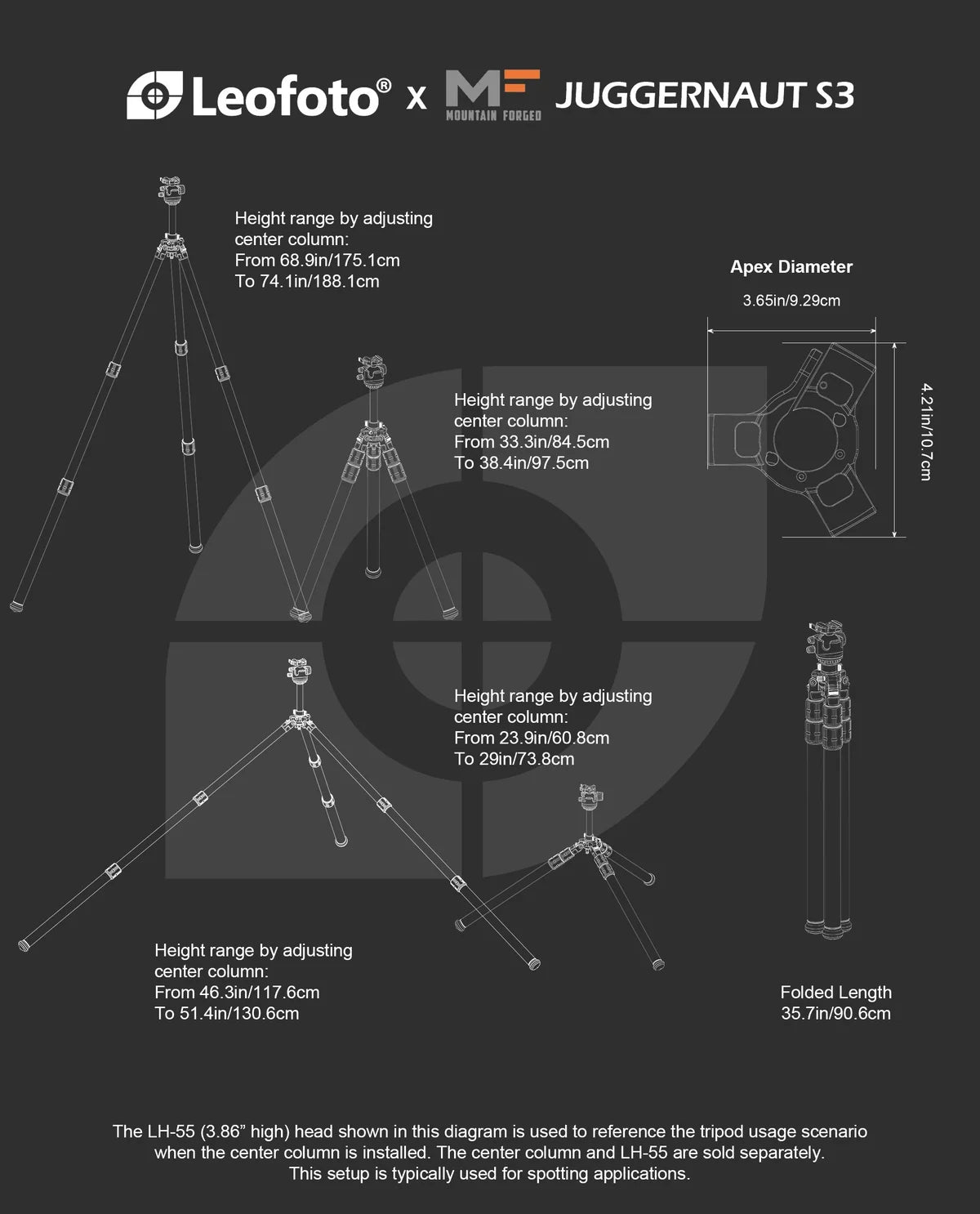

The Juggernaut centre column is available separately.

Official Leofoto South Africa stock with local warranty and support.
