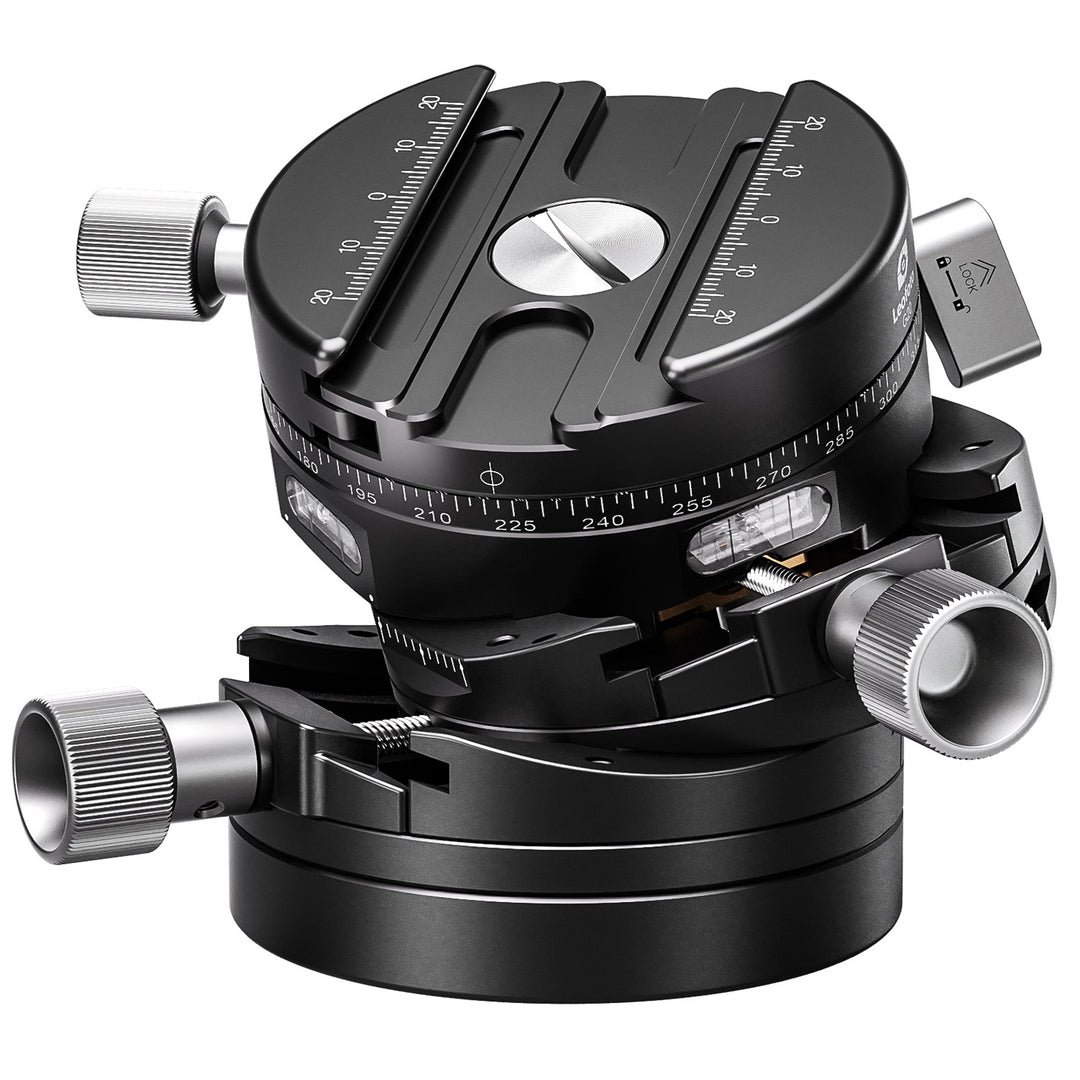

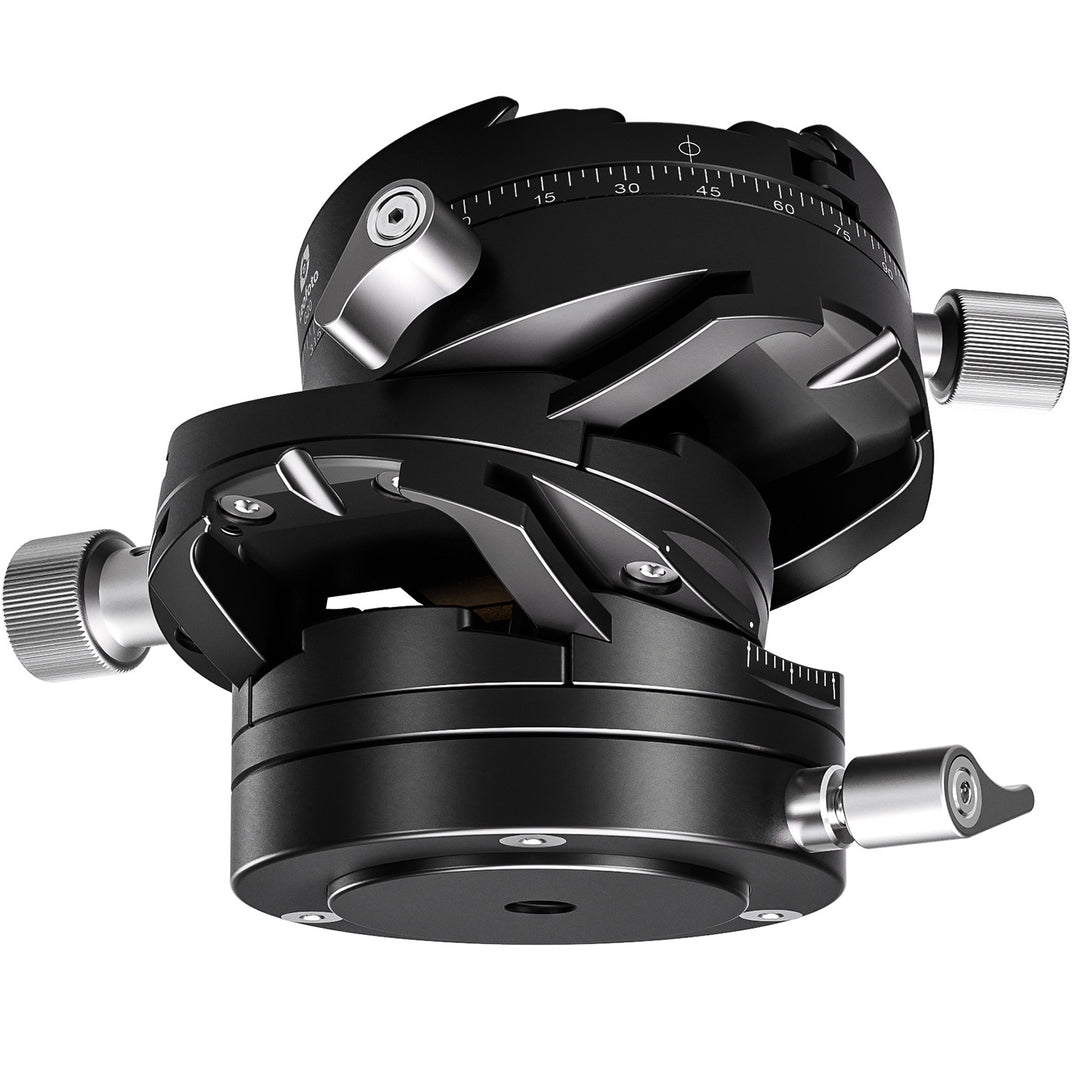

Leofoto G20 3D Geared Head

LEOG20

R 4,999.00
/
Tax included.
  • Free delivery in South Africa on orders of R1000+
  • Low stock - 6 items left
  • Backordered, shipping soon

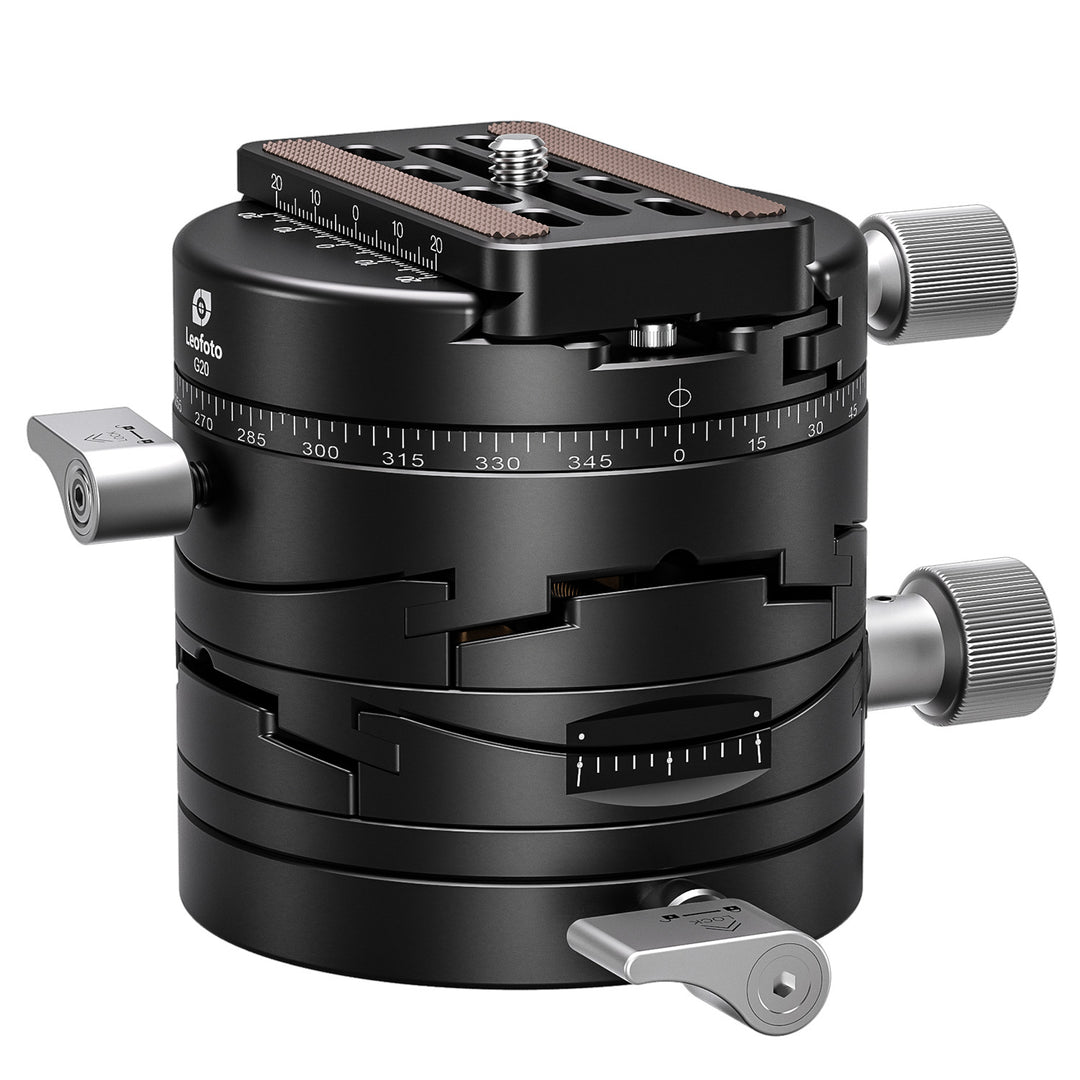

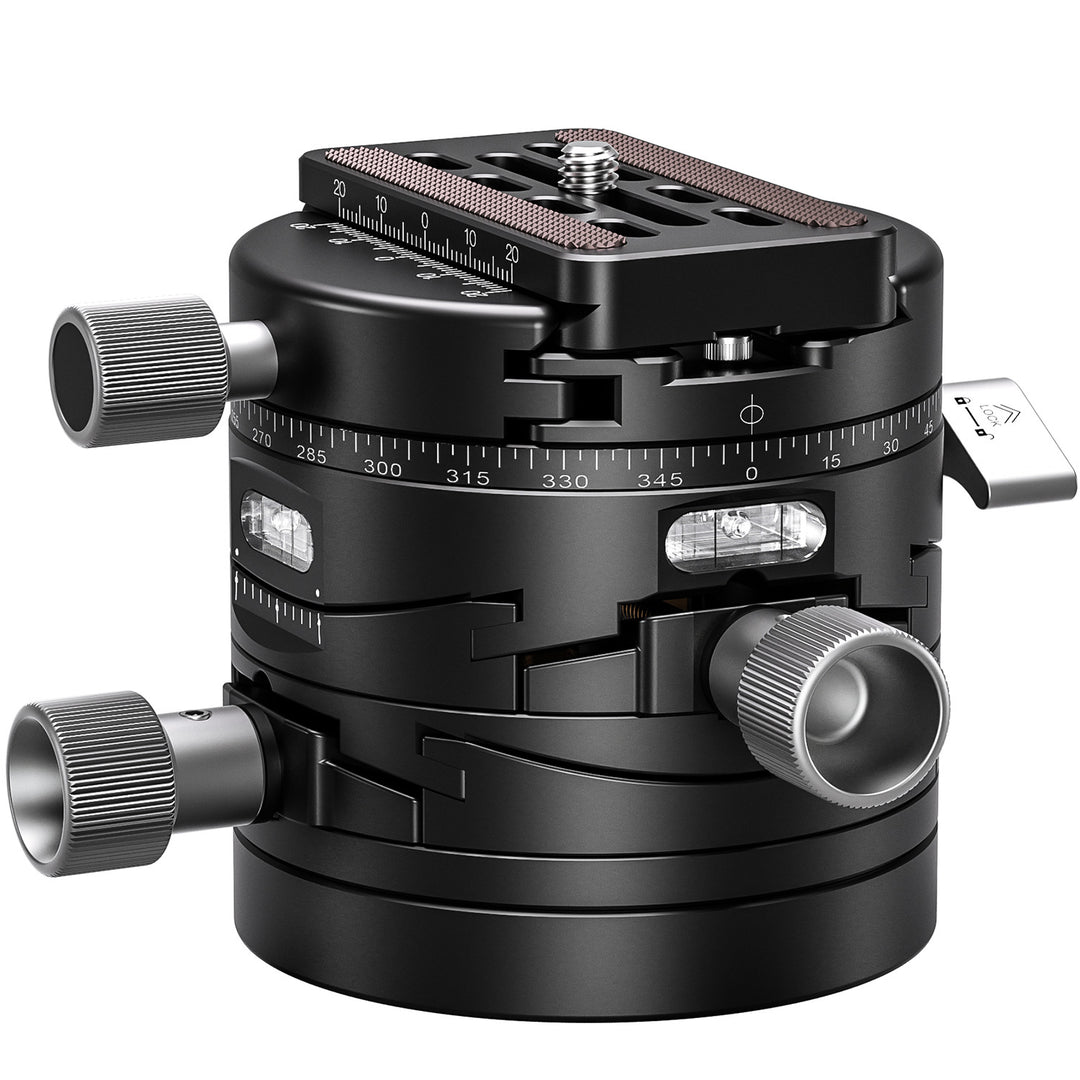

The Leofoto G20 3D Geared Head is the big brother of the G2. The G20 is a fantastic tool, but it is critical that you understand what it is designed to do as it is far from a conventional tripod head. If you don’t consider yourself a tripod nerd, then this product probably isn’t for you.

The G20 is a centered geared head. Normal heads allow compositional adjustments by allowing rotation of the camera, with the center of the ball as the rotation point. As the radius between the rotation point and camera is quite big, when changing composition, the point of view changes drastically. For those obsessed with perfect composition, this is unacceptable. With centered heads, the camera moves in an arc, which if completed, would make a virtual circle around the camera, the center point of which should be the focal plane of the image, meaning that your point of view remains identical regardless of how you change the composition. In short – with a normal ball head, the camera moves around the head. With centered heads, the head moves around the camera. The downside of centered heads is that in order to provide a large movement range, the head has to be massive, so a compact centered head like the G2 will have a limited range of movement.

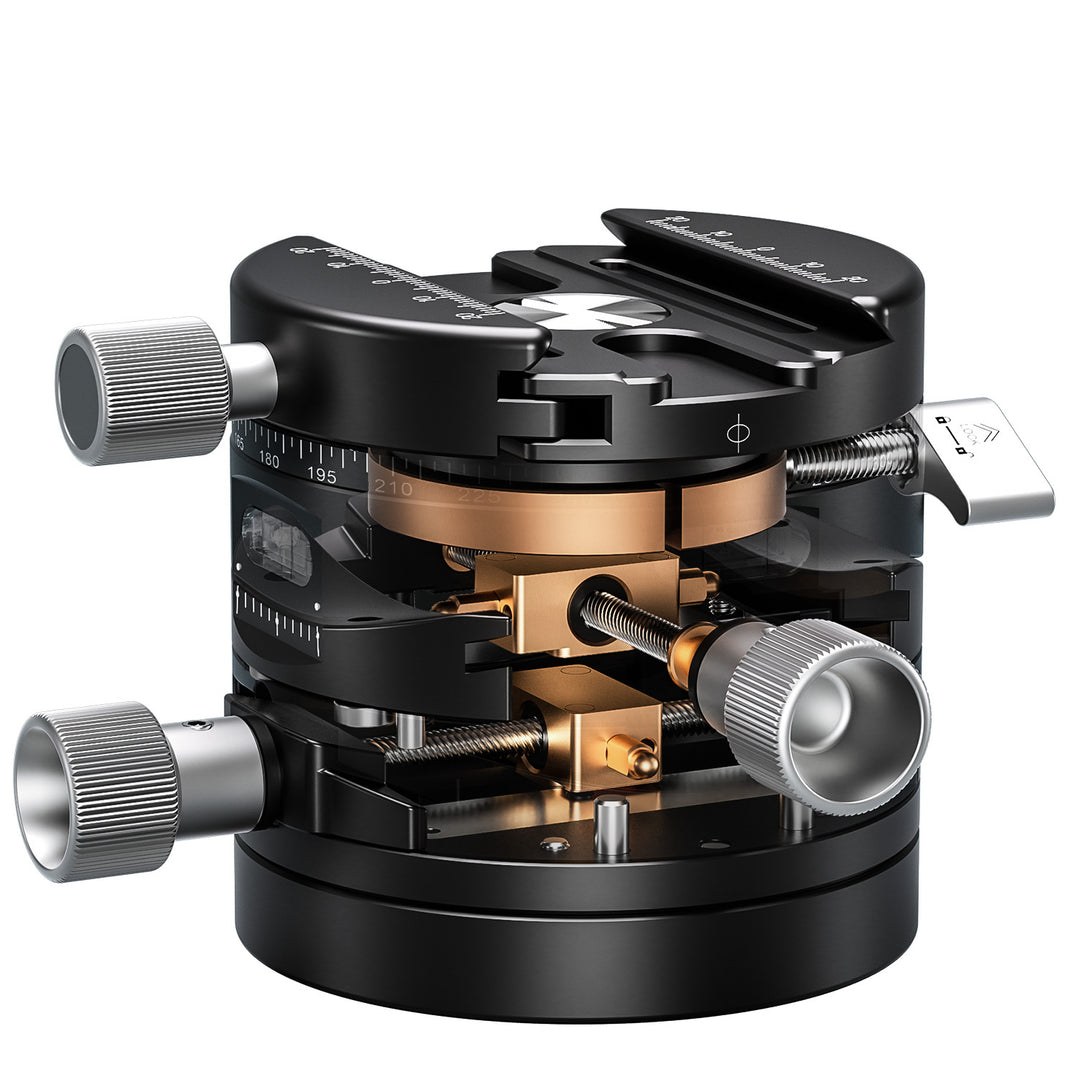

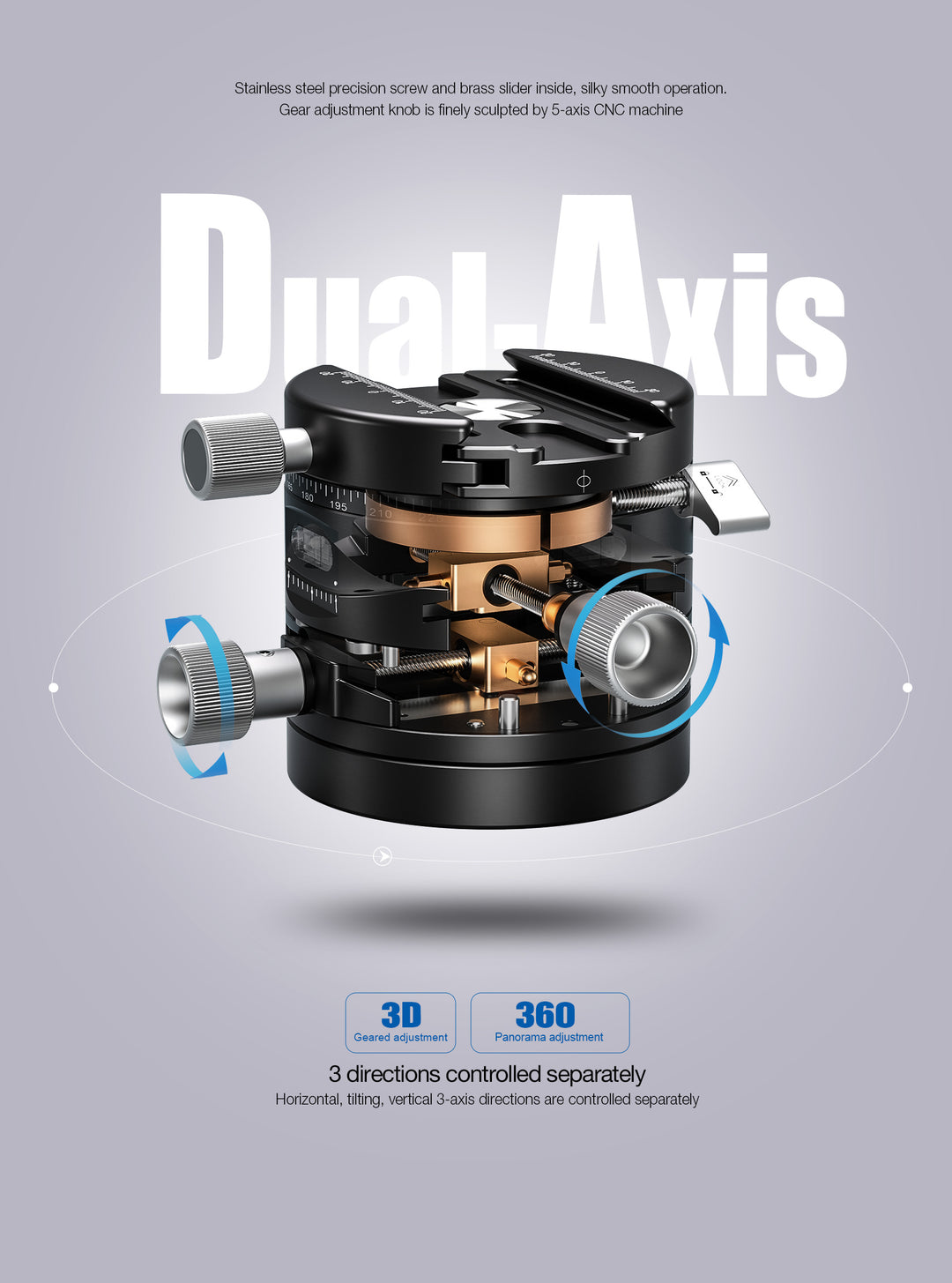

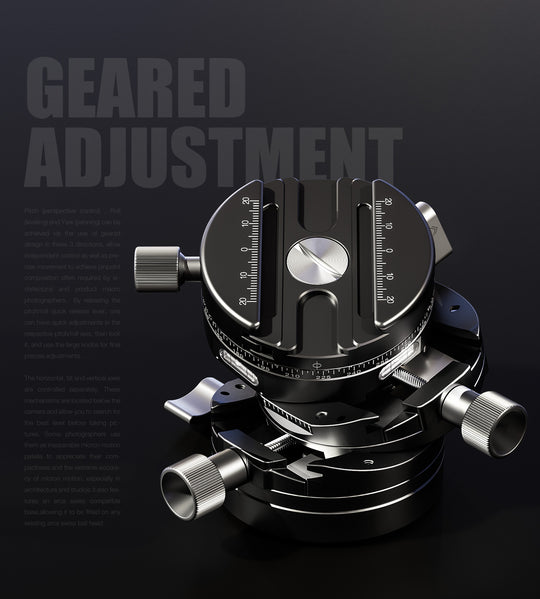

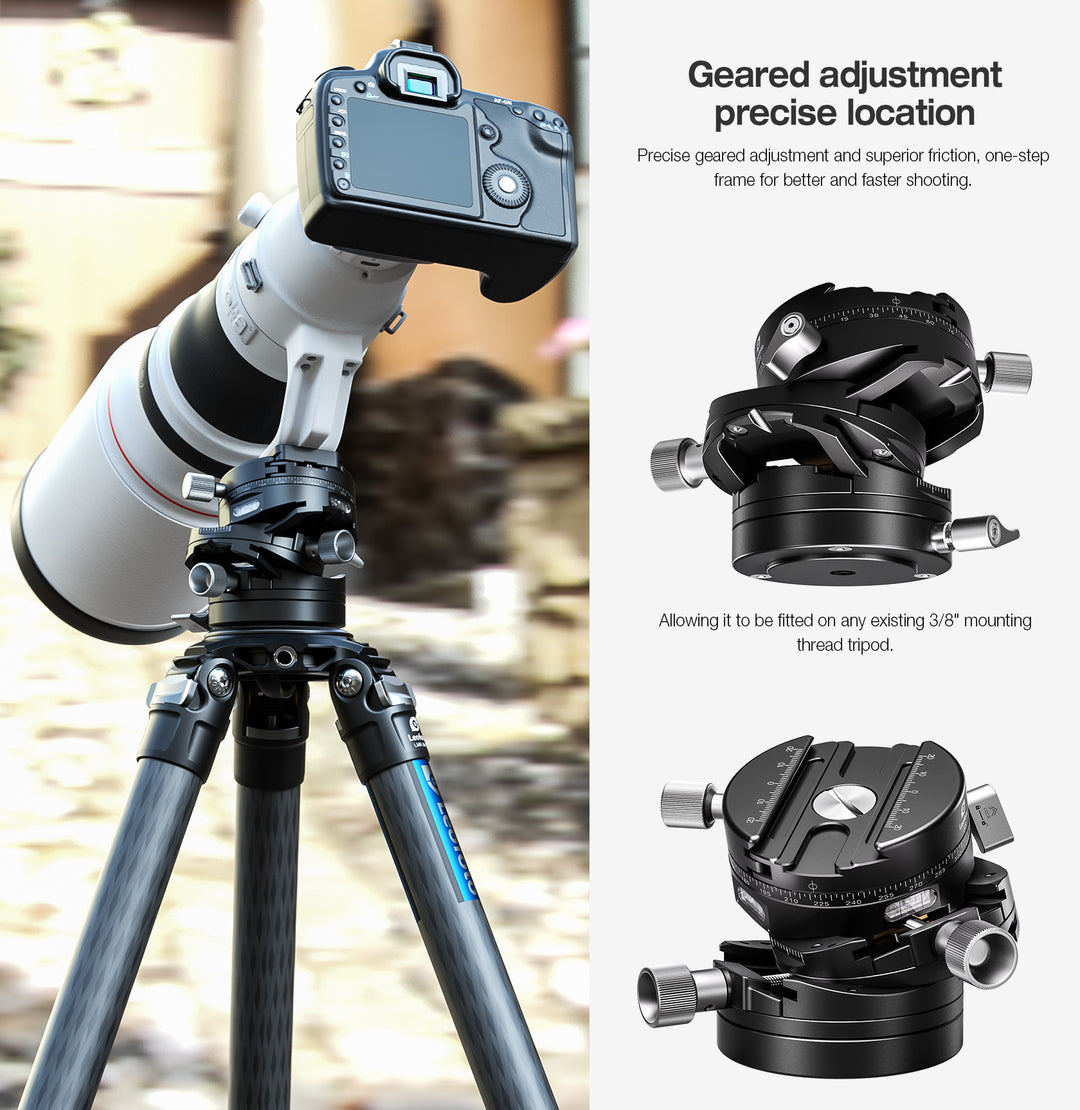

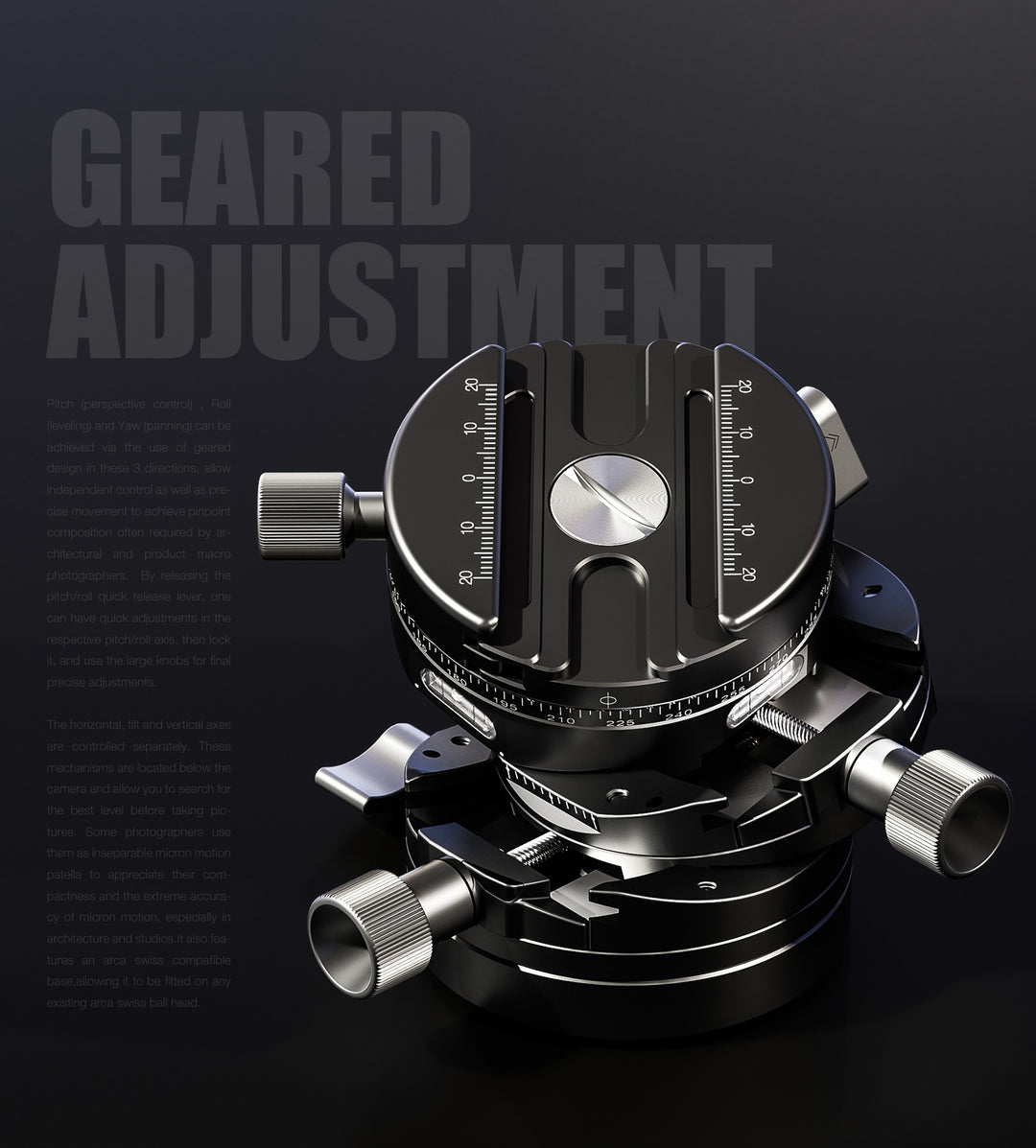

At 680g and 75mm diameter by 80mm height, it is not as travel friendly as the G2, but still quite compact. Finely geared X- and Y- axes offer precise geared adjustment of your composition, but in a limited range of 10 degrees up or down on each axis. By combing the two axes, a range of about 15 degrees is achievable, which is sufficient for most uses.

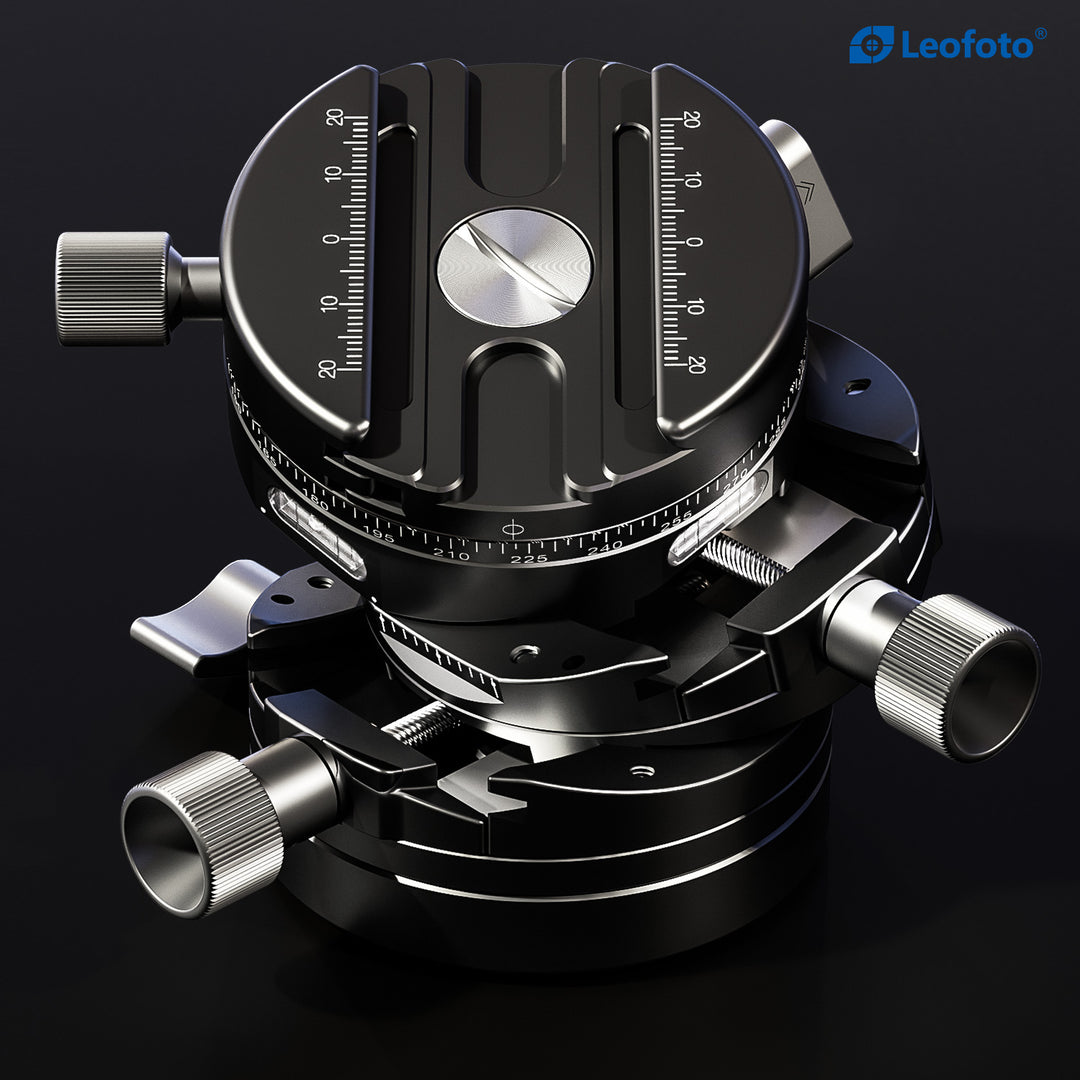

Panoramic Use – A panning axis at the top allows panoramas with a central horizon. Doing panoramas with an off-center horizon requires another panoramic axis below the head, which can be added by mounting the G20 on the RH-2L panning clamp.

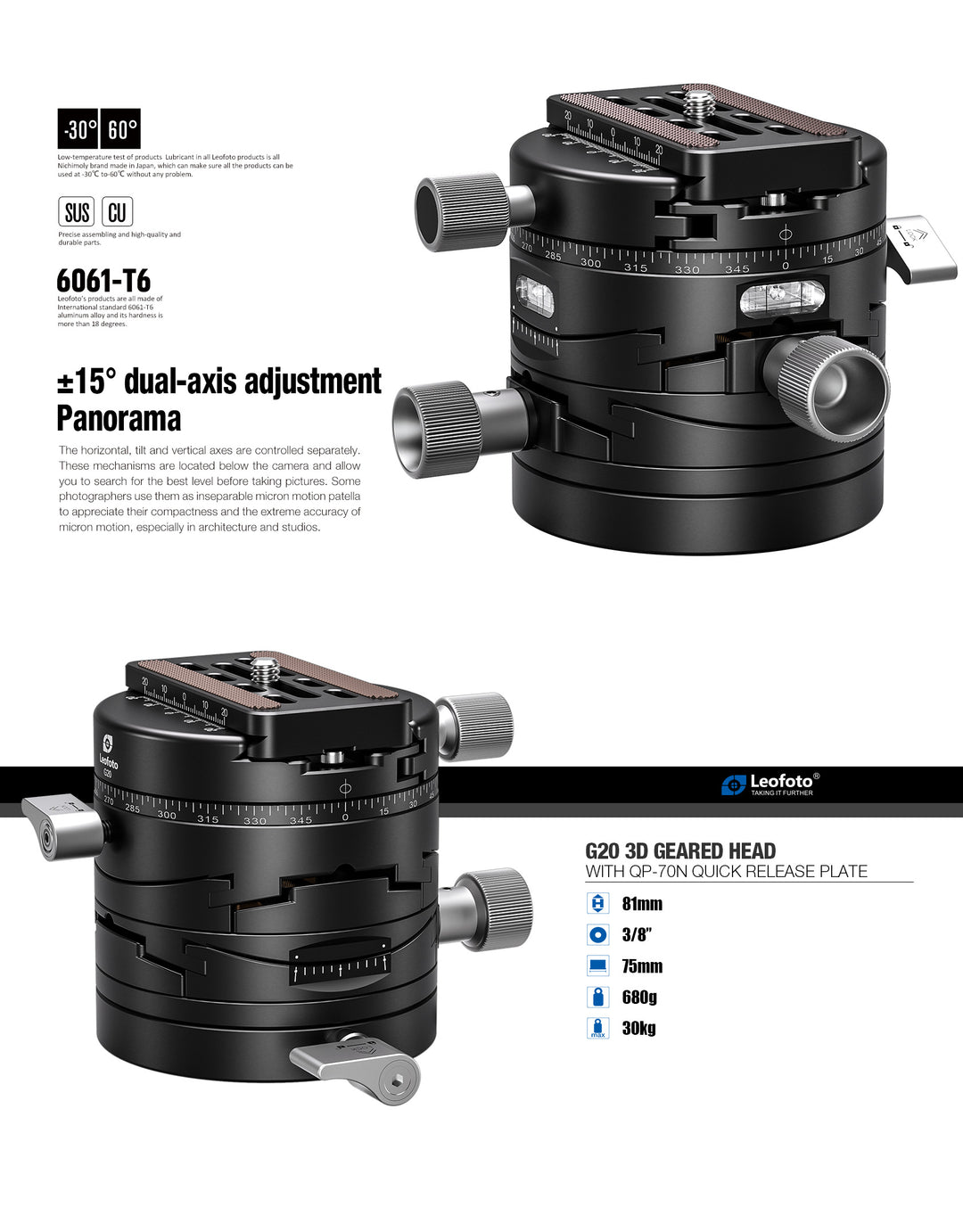

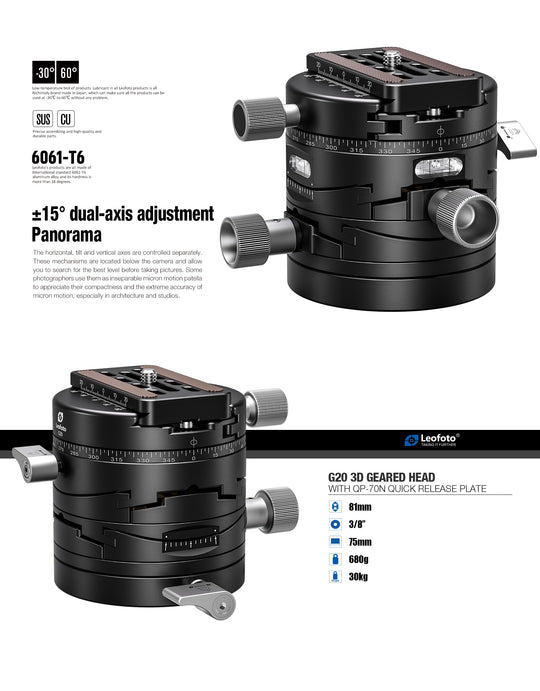

Specifications

  • QR Plate: QP-70N
  • Panning base diameter: 75mm
  • Height: 81mm
  • Mounting hole: UNC3/8"
  • Max load: 20kg
  • Weight: 680g



CHOOSING LEOFOTO

Tripod Heads

Leofoto offers a vast range of tripod heads to cover a broad base of user requirements. Take a few minutes to educate yourself on what is available, so you can make an informed decision when choosing a head suited to your needs.

Want to see and feel the range before buying? Visit our office in Saxenburg Park, Kuils River by contacting us.

Model naming

Leofoto tripod heads come in a diverse range of styles, sizes and clamp variations. Understanding the naming convention for each of the models is probably the easiest way to understand what each one does.

CHOOSING LEOFOTO

LH Heads

Low profile design offers many advantages over normal ball heads; simpler internal design, lower center of gravity, improved stiffness, greater ball-cup contact area, to name a few.

Choose your size

The range starts with the diminutive LH-25 with a tiny 25mm ball through to the large LH-55 with its 55mm ball. Our absolute favourite is the LH-40 as it features large ribbed control knobs, without being too heavy or expensive.

The LH-55 is an oversized head for super tele lenses or large format cameras. The LH-36 is an ideal size for those shooting with APS-C cameras or light full frame setups. The LH-30 and LH-25 are great for MFT and compact camera options or for people who hike a lot and count every gram that they pack.

Choose your clamp

Most of the LH size options are also available in a range of different clamps. If you like simplicity and price is a major factor, stick to the standard screw clamp. For those who can afford it, a lever release clamp makes the operation of the head a dream. A panning clamp is great for panorama shooting, but it does add weight and make the head more complicated, so avoid it if you're not someone for gadgets.
MOUNTING A STANDARD LENS

Short Lens Plates

There are two features that distinguish a lens plate from a camera plate.



  1. Lens plates have more than one screw as lenses normally have two screw holes at the bottom.

  2. Lens plates feature an anti-twist flange on one edge.



Both of these features help to prevent the lens from being able to twist out of alignment on the plate and it's the reason why you can't use a camera plate as a lens plate.
