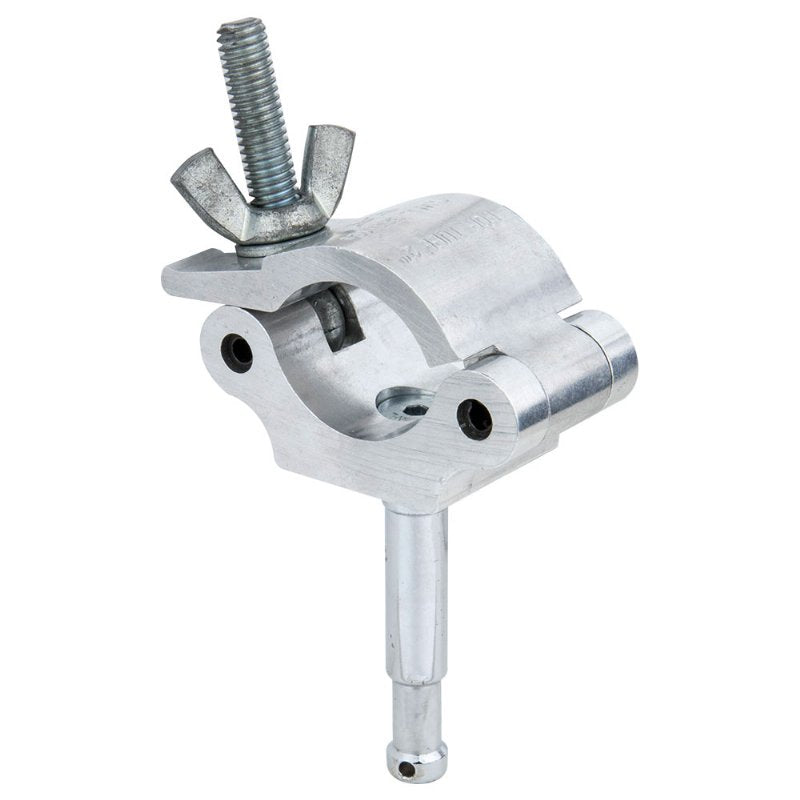

Kupo KCP-836 Baby Ben Stud Coupler – Barrel Clamp with 16mm Baby Stud, 48–51mm Pipe

A half coupler, also called a barrel clamp — a clamp that closes around a 48–51mm scaffold or lighting bar and gives you a fixing point on it. This one carries a 16mm (5/8") baby stud, the standard peg that lightweight luminaires, grip heads and most studio accessories socket onto. Maximum load 100kg.

Made from 6061 T6 high-tensile aluminium extrusion. The clamp closes with a wing nut on a threaded bolt, and the bolt is captive, so the wing nut cannot spin all the way off and drop while you are working overhead.

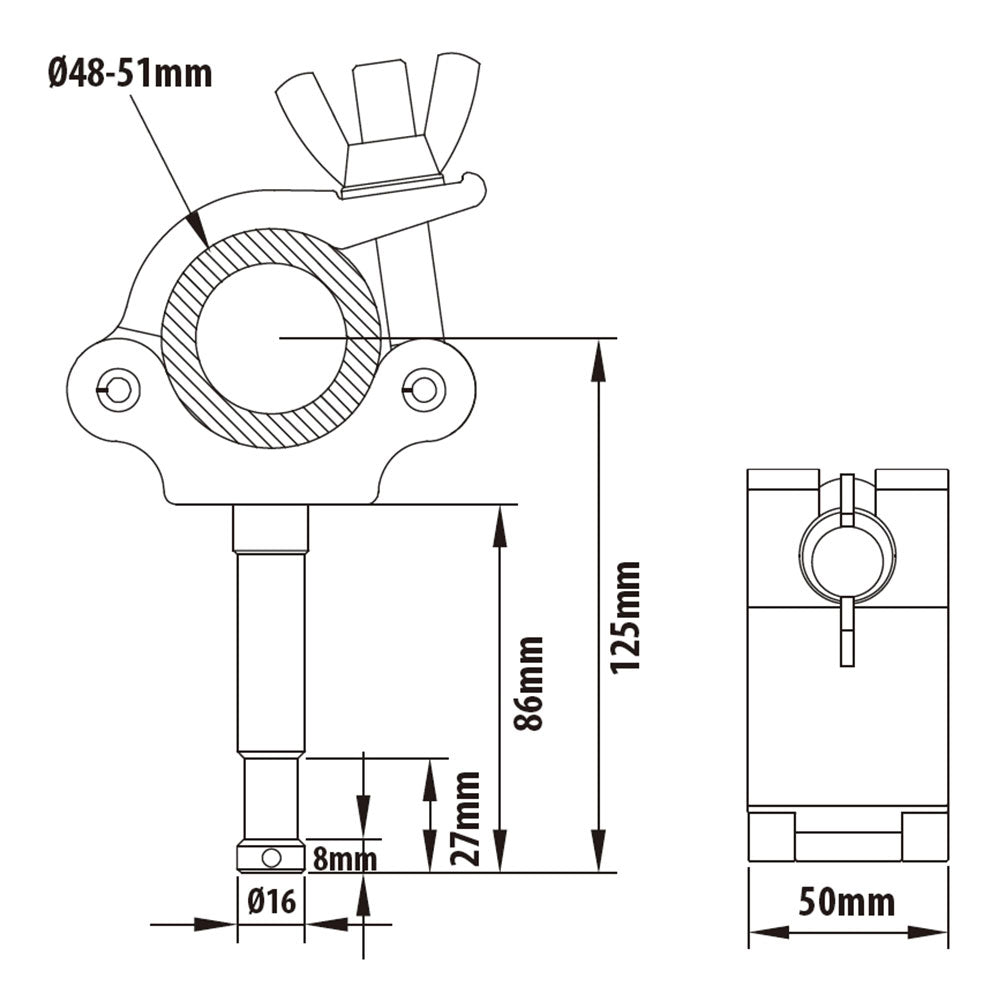

Key Specifications

• Fits tube 48–51mm
• Maximum load 100 kg
• 16mm (5/8") baby stud for lightweight luminaires and grip heads
• Wing nut on a captive threaded bolt
• 6061 T6 aluminium extrusion
• Weight 0.6 kg

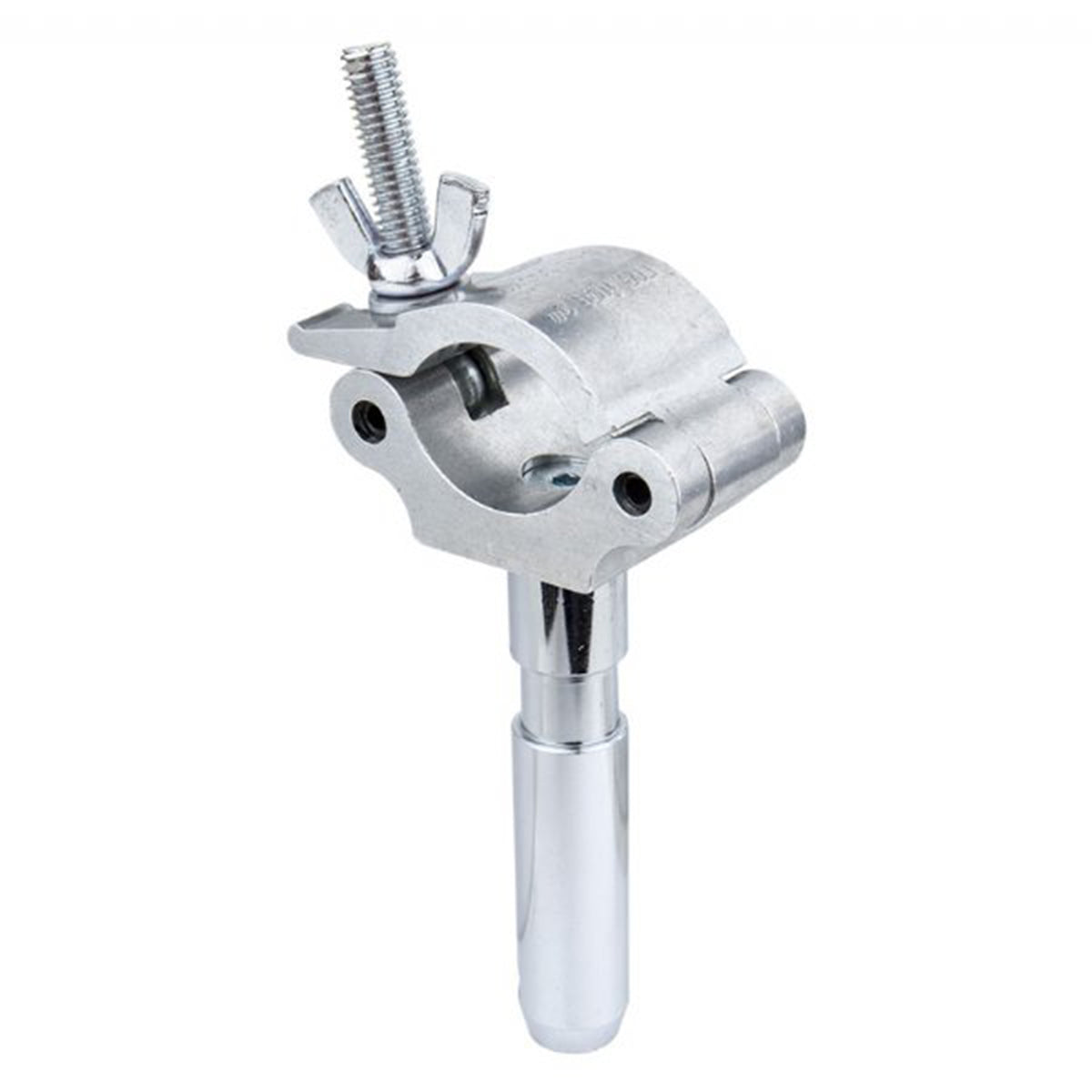

Note: for a 28mm junior spigot on the same clamp body, see the KCP-834 Big Ben.
