Kupo KCP-710 Super Convi Clamp – Mafer / Super Clamp, Chrome (Stud Sold Separately)

A TÜV-certified super clamp in die-cast aluminium with stainless steel parts, rated to 20kg. The jaw takes round tube from 12 to 51mm or flat stock from 12 to 40mm, and an integral saddle steadies it on flat surfaces.

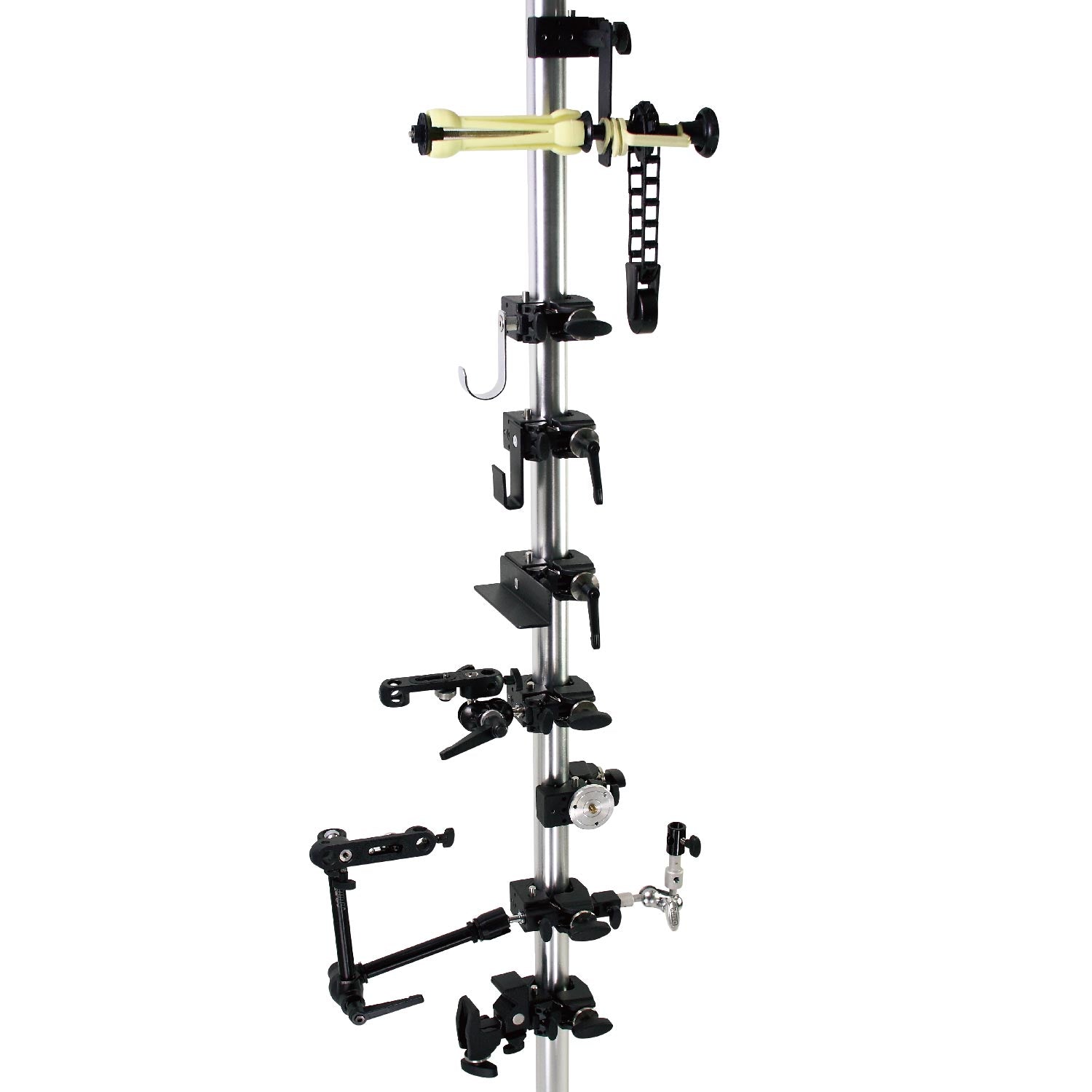

The 16mm hexagonal receiver accepts Kupo Convi accessories, from a plain snap-in stud to the Max Arm, and takes a round 16mm baby stud as well. A safety lock pin holds the accessory even if the locking screw works loose. The ratcheted handle turns through a full circle, so it tightens where there is no clearance to swing a lever.

No stud is supplied. Add a KS-003 snap-in pin to mount anything to it.

Key Specifications

• Clamping range 5–51mm
• Maximum load 20 kg

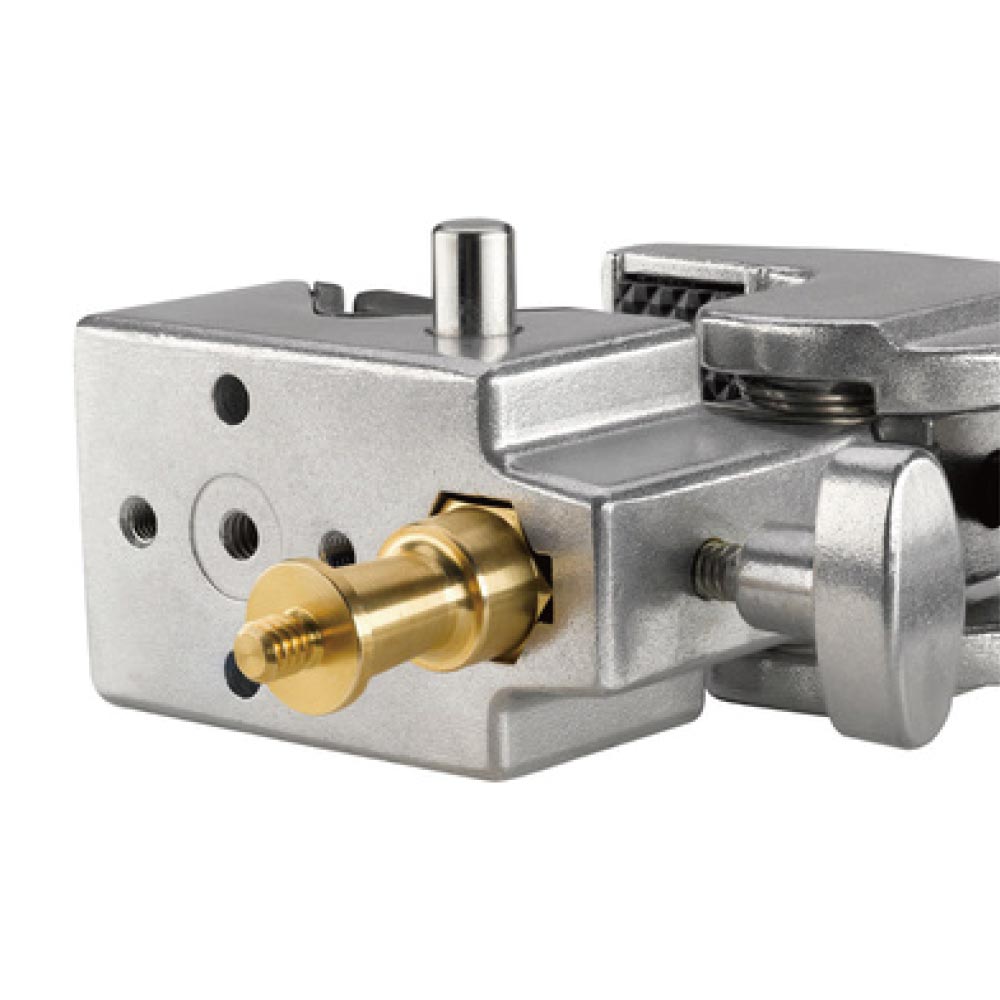

• 16mm hexagonal Convi receiver with safety lock pin, also accepts a round 16mm baby stud

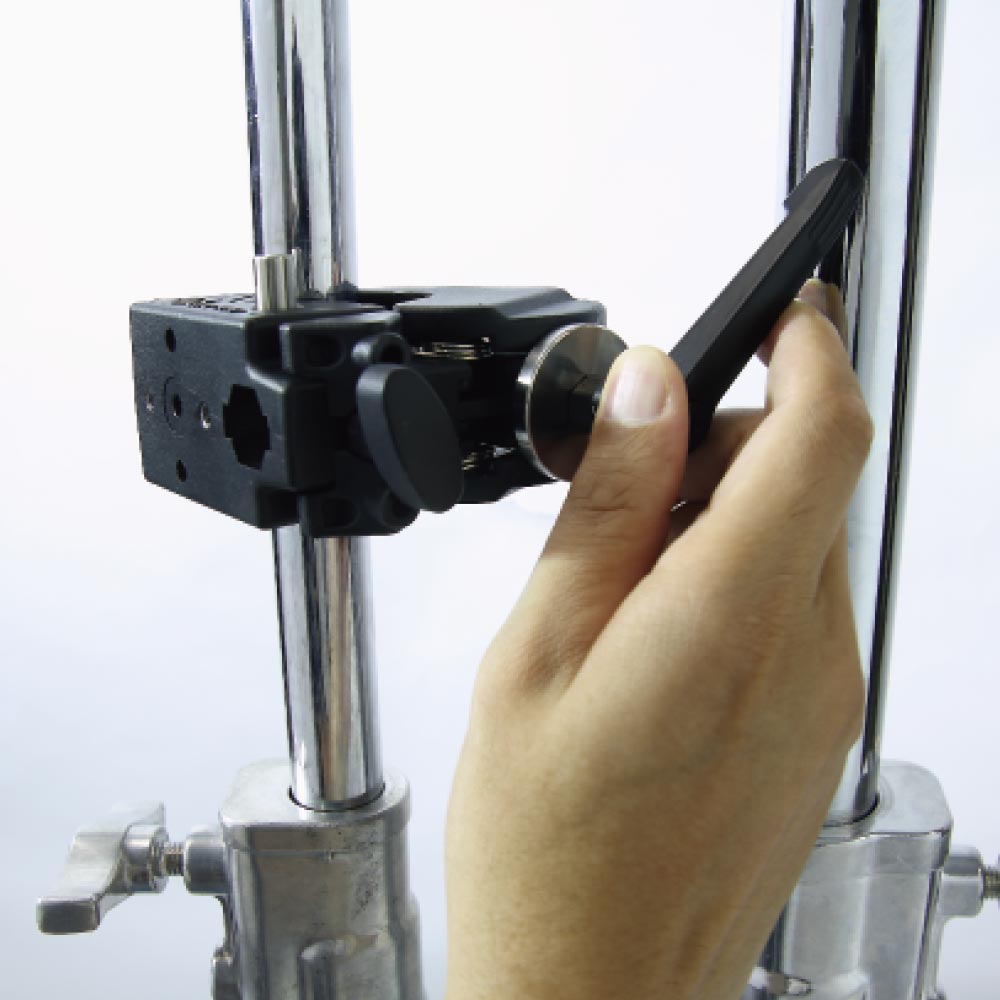

• Ratcheted handle, rotates a full circle
• Two M5 and one 1/4"-20 female threads on the body
• Integral saddle for flat surfaces
• Die-cast aluminium with stainless steel parts

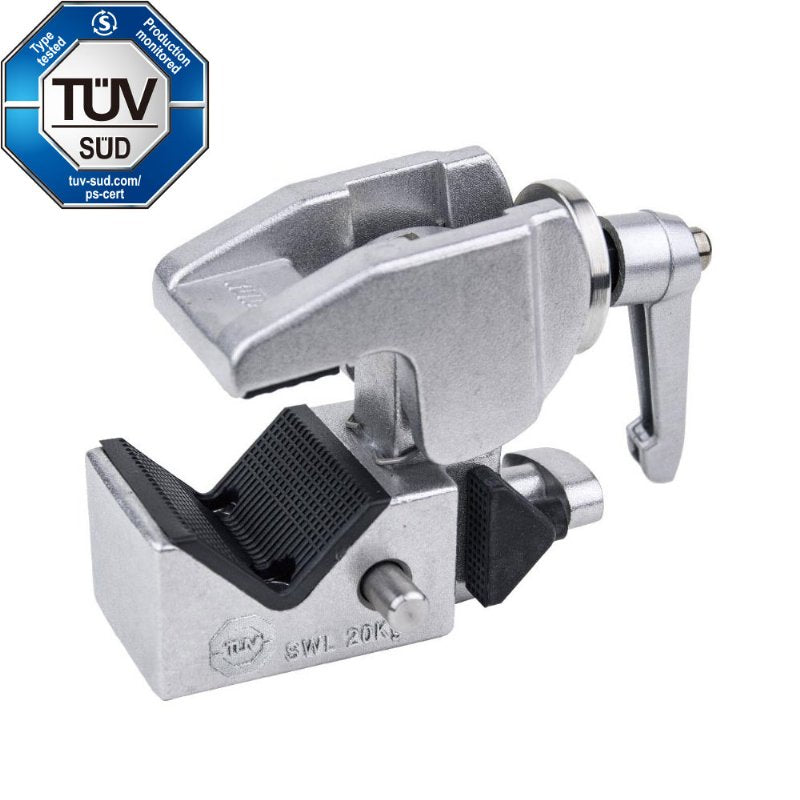

• TÜV certified

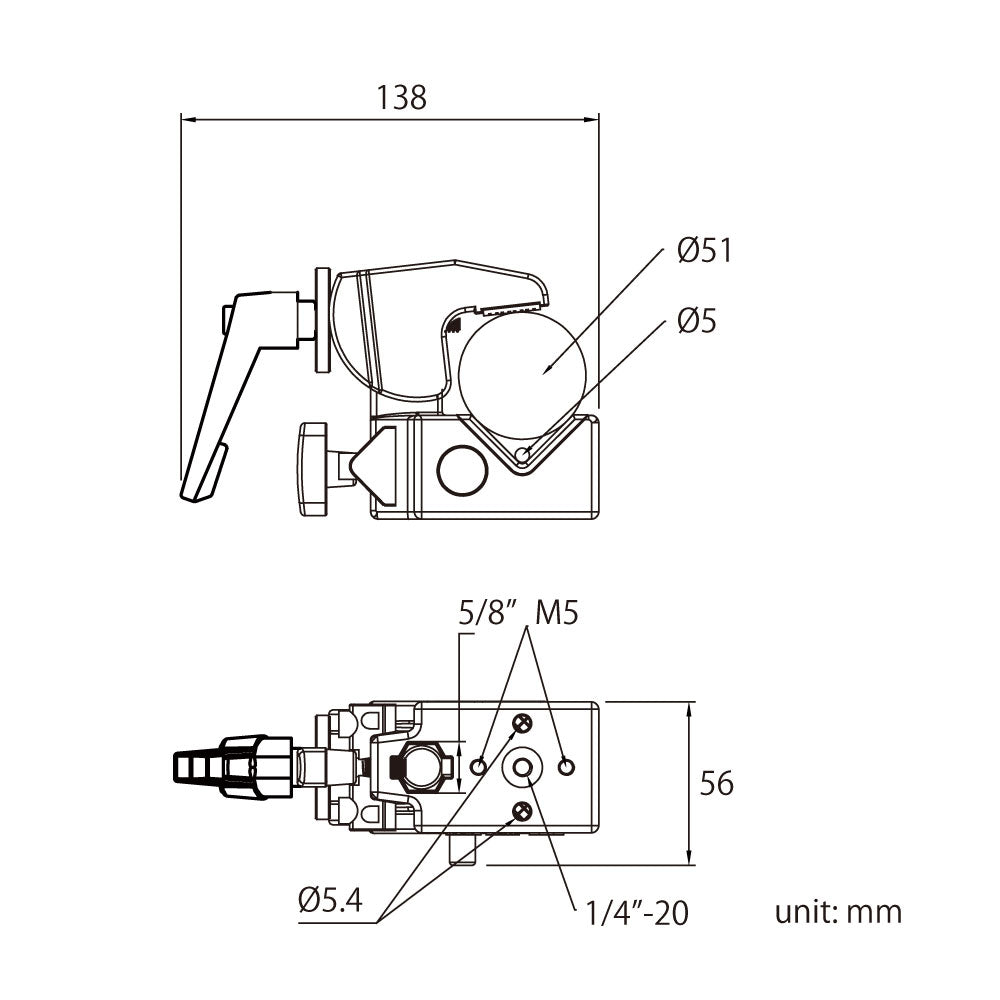

• 138 × 56 mm
• Weight 450 g


Note: Stud sold separately
